$1,525.00
Berlon Industries HVMB High Volume Skid Steer Bucket
$1,690.00- No auxiliary hydraulics needed
- Universal skid steer quick attach, MPUF-1 plate included
- 60 to 102 inches wide, 510 to 925 pounds
Shipping
- Orders under $5,000$349 flat
- Orders of $5,000 or moreFree
- Items over 2,000 lb, orders under $20,000$999 flat
- Items over 2,000 lb, orders of $20,000 or moreFree
🚚 U.S. delivery · timing varies by product
✓ Product-specific fitment

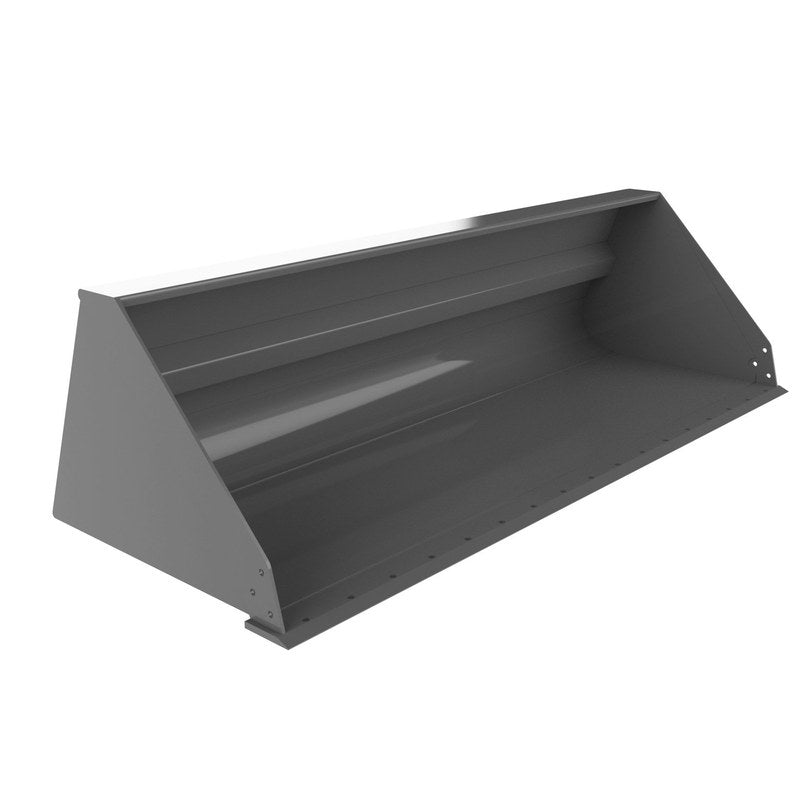

Berlon Industries Skid Steer Bucket Overview
Livestock feed, bag silage, snow and mulch are light for their size, so the job goes faster with a bucket that carries more of it per trip. Berlon's HVMB high volume material bucket stands 29 inches tall with a 39 inch floor and holds 27.5 to 46.7 cubic feet heaped across seven widths from 60 to 102 inches. It is built from 3/16 inch steel with three or four wear bars, a radius kick-out plate and a reinforcement tube across the back.
The HVMB Series combines what Berlon used to sell as its MDHV, SLMB and HDHV buckets. It is meant for farm feed, digging out bag silage, snow removal and landscaping. Every width comes with a 3/4 by 6 inch weld-on cutting edge with holes and the MPUF-1 universal mounting plate, with the HD package offered on every width.
Berlon High Volume Material Skid Steer Bucket Features
- 29 inch height and 39 inch floor for high volume, light material
- 3/16 inch thick steel body
- 3/4 by 6 inch weld-on cutting edge with holes
- Three wear bars up to 84 inches, four on the 96 and 102 inch
- Radius kick-out plate and a reinforcement tube across the back
- Seven widths from 60 to 102 inches
- HD package offered on every width
- Built to order by Berlon Industries, currently 5 to 6 weeks
Berlon HVMB Bucket Sizes
| Model | Inside width | Outside width | Height | Depth | Heaped capacity | Weight |
|---|---|---|---|---|---|---|
| HVMB-60 | 60 inches | 61.5 inches | 29 inches | 39 inches | 27.5 cubic feet | 510 pounds |
| HVMB-66 | 66 inches | 67.5 inches | 29 inches | 39 inches | 30.2 cubic feet | 553 pounds |
| HVMB-72 | 72 inches | 73.5 inches | 29 inches | 39 inches | 33.1 cubic feet | 573 pounds |
| HVMB-78 | 78 inches | 79.5 inches | 29 inches | 39 inches | 35.7 cubic feet | 607 pounds |
| HVMB-84 | 84 inches | 85.5 inches | 29 inches | 39 inches | 38.5 cubic feet | 710 pounds |
| HVMB-96 | 96 inches | 97.5 inches | 29 inches | 39 inches | 44 cubic feet | 840 pounds |
| HVMB-102 | 102 inches | 103.5 inches | 29 inches | 39 inches | 46.7 cubic feet | 925 pounds |
Berlon HVMB Edge and Build Options
| Option | What it adds |
|---|---|
| Weld-on edge | The standard 3/4 by 6 inch weld-on cutting edge with holes, so a bolt-on edge or tooth bar can be added later |
| Bolt-on cutting edge | Berlon BOCE: a reversible 3/4 by 8 inch beveled edge in C-1080 high carbon steel that bolts to the weld-on edge |
| Bolt-on tooth bar | Berlon BOTB: an HD shank tooth bar with replaceable #23 teeth that bolts over the weld-on edge |
| Bolt-on edge and tooth bar | The bolt-on cutting edge plus Berlon's BOTBOE tooth bar, built to bolt over it |
| HD package | The MPUF-1HD universal plate and a double reinforcement kit, which Berlon recommends for track machines and machines over 75 HP |
Will the Berlon HVMB Bucket Fit My Skid Steer?
Every HVMB bucket comes with the MPUF-1 universal mounting plate, the quick attach on most skid steers and compact track loaders and on tractor loaders built with a skid steer style plate, and needs no hydraulics. Wide, deep buckets fill heavy when the material is wet, so size the bucket to your machine: the buckets weigh 510 to 925 pounds empty before any load.
Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
Will this fit my machine?
Pick your machine type, make and model in the compatibility checker to see if this skid steer bucket is built for your machine.
Fit promise: A person on our team confirms your machine before your order goes to the maker.
We check the fit with you by phone before you order, Monday to Friday, 9 AM to 5 PM ET.
