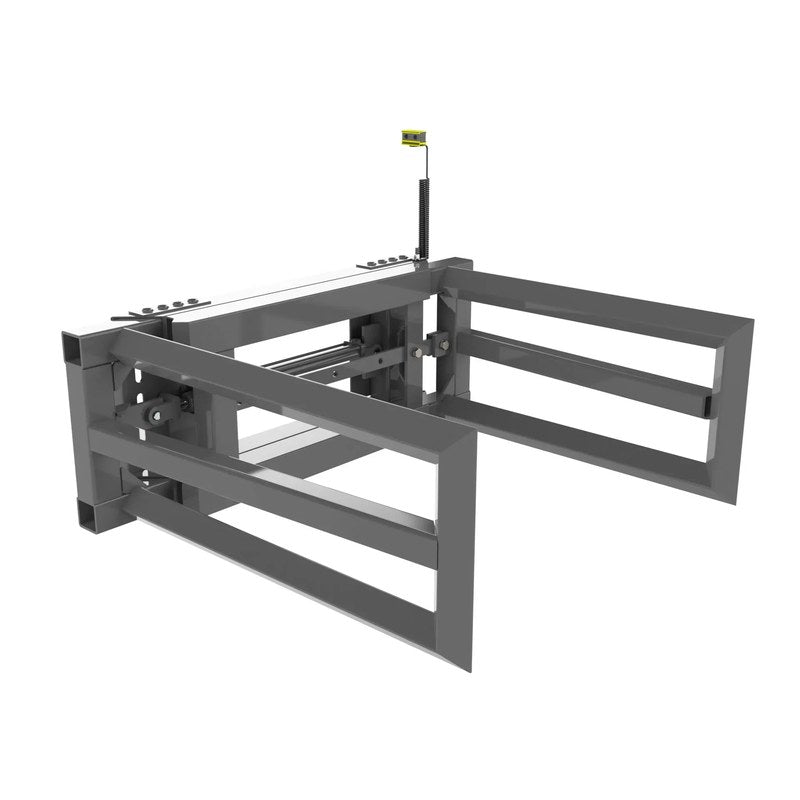

Berlon Industries BBH Skid Steer Bale Handler

A bale spear punctures the wrap, and a punctured bale of baleage spoils. Berlon's BBH bale handler grabs wrapped or unwrapped bales, square or round, with smooth radius arms that hold the bale without tearing or puncturing the wrap. The right arm closes hydraulically on a 2.5 by 24 inch cylinder at 3,000 PSI, and the left arm adjusts by hand, so the grip opens from 43 1/8 to 96 inches. It handles bales up to 2,300 pounds.

The BBH is Berlon's bale handler for skid steers and tractor loaders with a skid steer style plate. It weighs 750 pounds, measures 47 inches front to back, and comes with the hoses, couplers and hose saver.

Berlon Skid Steer Bale Handler Features

• Smooth radius arms grab wrapped bales without tearing the wrap
• Handles round or square bales, wrapped or unwrapped
• Right side hydraulically operated on a 2.5 by 24 inch cylinder, 3,000 PSI
• Left side manually adjustable
• Width adjustable from 43 1/8 to 96 inches
• Capacity up to 2,300 pounds
• Hoses, couplers and hose saver included
• Built to order by Berlon Industries, currently 5 to 6 weeks

Berlon BBH Specifications

Read the Berlon BBH owner's manual (PDF) for hookup, use and care.

Will the Berlon Bale Handler Fit My Machine?

The BBH comes with the MPUF-1 universal mounting plate, the quick attach on most skid steers and compact track loaders and on tractor loaders built with a skid steer style plate. It needs one set of auxiliary hydraulics for the right arm; the hoses, couplers and hose saver come with it. Keep the bale plus the 750 pound handler within your machine's rated operating capacity.

Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
