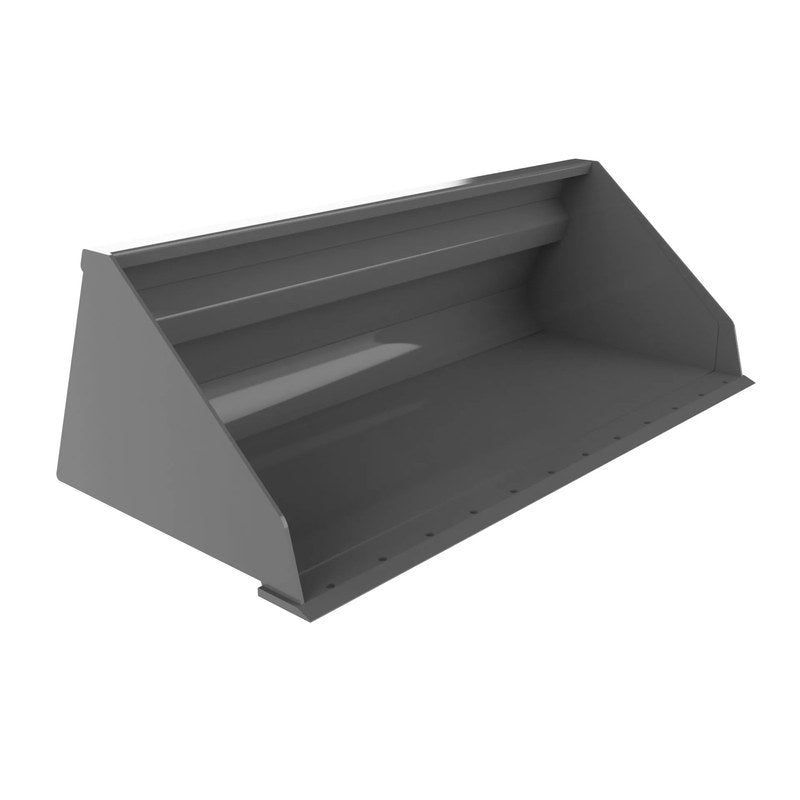

Berlon Industries UTHB Utility High Back Skid Steer Bucket

Manure, slurry and bulky material spill over the back of a low bucket before the load is full. Berlon's UTHB puts a 25 inch high back on its utility bucket, which lifts heaped capacity to 21.9 to 30.6 cubic feet across five widths from 60 to 84 inches. It is built from 3/16 inch steel with three wear bars, a radius kick-out plate and a reinforcement tube across the back, and the weld-on edge has holes for a bolt-on edge or tooth bar.

The UTHB Series is Berlon's utility high back bucket for when you need more capacity than a standard utility bucket. Every width comes with a 3/4 by 6 inch weld-on cutting edge with holes and the MPUF-1 universal mounting plate, at a 70 degree back angle.

Berlon High Back Skid Steer Bucket Features

• 25 inch high back for manure, slurry and bulky material
• 3/16 inch thick steel body
• 3/4 by 6 inch weld-on cutting edge with holes
• Three 1/2 by 3 inch wear bars
• Radius kick-out plate for added strength and easy clean out
• Reinforcement tube across the back of the bucket
• MPUF-1 universal skid steer mounting plate
• Built to order by Berlon Industries, currently 5 to 6 weeks

Berlon UTHB Bucket Sizes

Berlon UTHB Edge and Build Options

Will the Berlon UTHB Bucket Fit My Skid Steer?

Every UTHB bucket comes with the MPUF-1 universal mounting plate, the quick attach on most skid steers and compact track loaders, and needs no hydraulics. The buckets weigh 462 to 611 pounds empty and hold more than a standard bucket, so check the loaded weight of your material against your machine's rated operating capacity. The HD package is offered on the 72, 78 and 84 inch buckets.

Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
