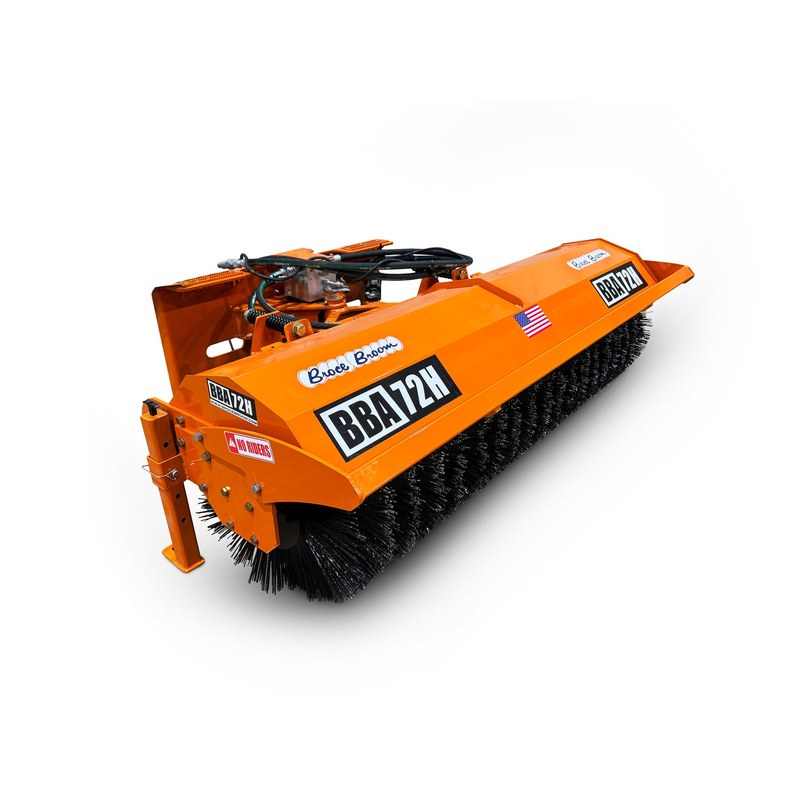

Broce Manufacturing Hydraulic Angle Skid Steer Broom

Choose the Broce hydraulic angle broom if you change the sweep angle as you work a parking lot, road shoulder or warehouse floor. You change the angle from the cab with the attachment controller Broce includes, and you can do it with the brush stopped. The controller runs off your machine's battery or lighter outlet. Your skid steer needs auxiliary hydraulics with 12 to 30 GPM of flow, and the universal mounting plate fits most makes. Without water, the five widths weigh 635 to 840 pounds.

The Broce hydraulic angle broom sweeps parking lots, road shoulders, sidewalks, warehouses and roadways with a skid steer, and a hydraulic cylinder angles it up to 30 degrees to the left or right. Broce's valving holds a constant hydraulic flow and pressure, so the 24 inch brush turns at 180 to 200 RPM across a broad range of skid steer makes and models. Five widths run from 48 to 96 inches, and the 72, 84 and 96 inch models are also offered with Broce's 40 gallon water system for dust control.

Broce BBA48H to BBA96H Hydraulic Skid Steer Angle Broom Features

• Hydraulic angle up to 30 degrees left or right, adjustable with the brush stopped
• Constant flow and pressure valving turns the brush at 180 to 200 RPM to prolong wafer life
• 24 inch brush of convoluted poly wafers on a 1 1/4 inch core bearing and spindle
• Direct drive core motor with relief valve and RPM regulation, with 1/4 inch steel guards over the motor and adjustment pins
• Attachment controller included, powered from the machine battery or a lighter outlet
• Broom stands protect the bristles in storage, and a front bumper protects the core cover and, on water system models, the spray bar

Broce Hydraulic Angle Broom Specs by Width

Each width has its own Broce operation and parts manual with the specs, maintenance steps and parts lists, and the Broce angle broom brochure covers the features and options.

• Broce BBA48H hydraulic angle broom operation and parts manual (48 inch)
• Broce BBA60H hydraulic angle broom operation and parts manual (60 inch)
• Broce BBA72H hydraulic angle broom operation and parts manual (72 inch)
• Broce BBA84H hydraulic angle broom operation and parts manual (84 inch)
• Broce BBA96H hydraulic angle broom operation and parts manual (96 inch)

Will the Broce Hydraulic Angle Broom Attachment Fit My Skid Steer?

The broom mounts on Broce's universal mounting plate, which fits most skid steers, and runs on auxiliary hydraulics with 12 to 30 GPM of flow. Its hoses come with connect under pressure couplers, plus a stubby coupler and a 90 degree adapter for machines where the couplers would hit the attachment as it rolls back. Broce's 7, 8 and 14 pin integrated control harnesses are available at extra cost in place of the standard controller; the right one depends on the connector on your machine.

With the 40 gallon water system filled, the 72, 84 and 96 inch models weigh 1,130 to 1,240 pounds and stand 36.68 inches tall. Send us your machine make and model and we will confirm the width, flow and controls before you order.
