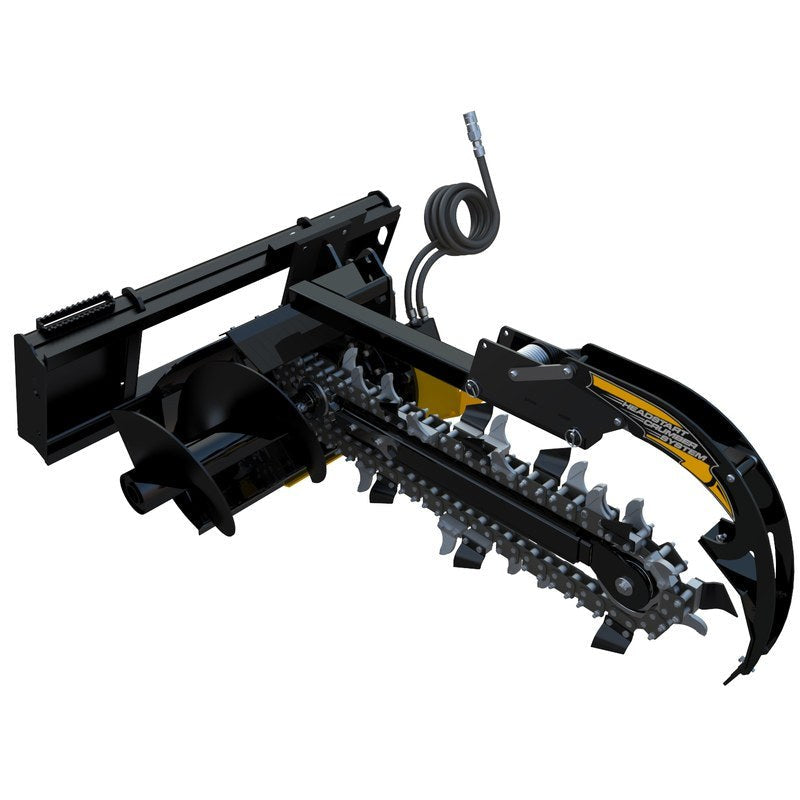

EIP Manufacturing High Flow Skid Steer Trencher, 48 Inch Depth

If your skid steer runs high flow and your trenches need to go past the 36 inch depth and 8 inch width of EIP's standard trencher, the EIP Manufacturing high flow skid steer trencher takes over. It digs 6, 8, 10 or 12 inches wide and up to 48 inches deep on 28 to 45 GPM, holds a steady depth and throws finely crumbed spoil to one side for backfill. Every model carries a combo chain and mounts on EIP's slide shift frame, sold separately.

The EIP High Flow Skid Steer Trencher digs trenches up to 48 inches deep and 6 to 12 inches wide on high flow skid steers running 28 to 45 GPM. It holds a steady depth and throws finely crumbed spoil to one side for compaction back into the trench, with a combo chain on every model.

EIP Manufacturing High Flow Trencher Features: a Trencher Attachment for Skid Steer High Flow Machines

• Cuts 6, 8, 10 or 12 inches wide and up to 48 inches deep
• Foot depth presets at 24, 32, 40 and 48 inches; the foot is visible from the cab
• Spoil goes to one side, finely crumbed for compaction
• Combo chain
• 28 to 45 GPM, 67 hp maximum

EIP High Flow Trencher Specifications, 6 to 12 Inch Chains

Will the EIP High Flow Trencher Fit My Skid Steer?

The trencher runs on high flow auxiliary hydraulics, 28 to 45 GPM; EIP sets the limits at 3,500 psi at 34 GPM and 45 GPM at 2,800 psi. It mounts on EIP's slide shift frame, which is not included and is ordered separately, so we confirm the frame with your order. It is 100 inches long, 31 inches tall and 48 inches wide.

Send us your machine make and model before you order and we will confirm the flow, the frame and the width for it.
