$5,549.00
EIP Manufacturing Skid Steer Trencher, 36 Inch Depth
$4,750.00- Requires auxiliary hydraulics, 13 to 25 GPM
- Slide shift mount frame required, sold separately
- Up to 36 inches deep, 4 to 8 inches wide
Shipping
- Orders under $5,000$349 flat
- Orders of $5,000 or moreFree
- Items over 2,000 lb, orders under $20,000$999 flat
- Items over 2,000 lb, orders of $20,000 or moreFree
🚚 U.S. delivery · timing varies by product
✓ Product-specific fitment

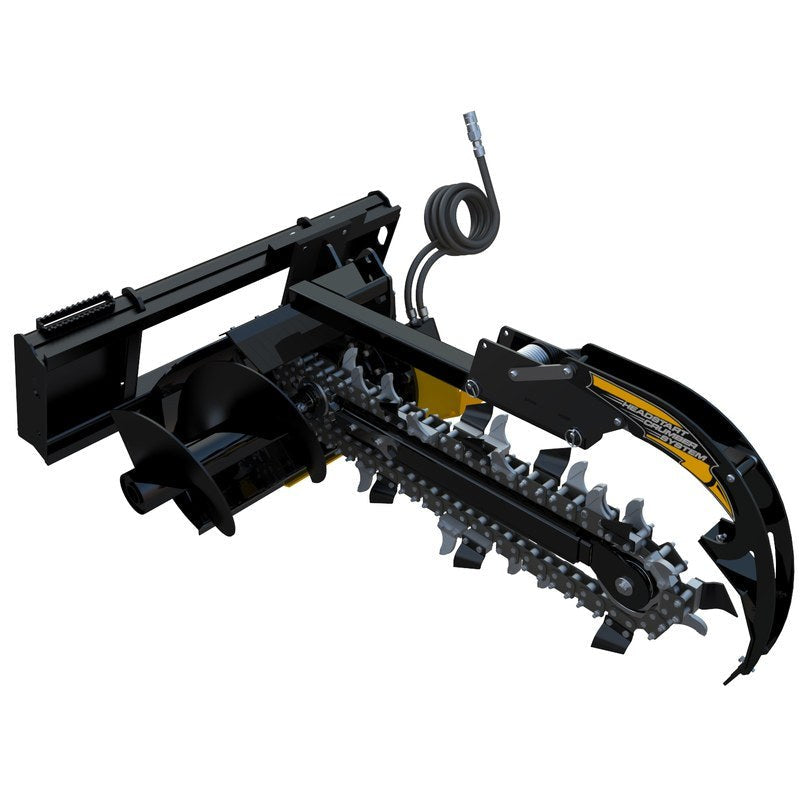

EIP Manufacturing Trencher Overview
Water lines, irrigation and buried power or communication runs all start with a trench, and digging one with a bucket leaves a wide, rough cut. The EIP Manufacturing skid steer trencher cuts 4, 6 or 8 inches wide and up to 36 inches deep, holds a steady depth and throws finely crumbed spoil to one side so it compacts well when you backfill. Choose an earth, combo or rock chain for your ground. It runs on 13 to 25 GPM and mounts on EIP's slide shift frame, sold separately.
The EIP Skid Steer Trencher digs trenches up to 36 inches deep and 4, 6 or 8 inches wide for pipe laying, irrigation, underground power and communications lines, repairs and general construction. It holds a steady depth and throws the spoil to one side as finely crumbed material that compacts well back into the trench, with an earth, combo or rock chain.
EIP Manufacturing Skid Steer Trencher Features: a Skid Steer Trencher Attachment for 36 Inch Trenches
- Cuts 4, 6 or 8 inches wide and up to 36 inches deep
- Foot depth presets at 24, 30 and 36 inches; the foot is visible from the cab
- Spoil goes to one side, finely crumbed for compaction
- Earth, combo or rock chain
- 13 to 25 GPM, 3,500 psi maximum at 16 GPM, 34 hp maximum
EIP Skid Steer Trencher Specifications by Width and Chain
| Model | Chain | Cutting width (in) | Cutting depth (in) | Oil flow (GPM) | Max pressure (psi) | Weight (lb) |
|---|---|---|---|---|---|---|
| DG-TBFT-000015 | Earth | 4 | 36 | 13 to 25 | 3,500 | 575 |
| DG-TBFT-000013 | Combo | 4 | 36 | 13 to 25 | 3,500 | 575 |
| DG-TBFT-000014 | Rock | 4 | 36 | 13 to 25 | 3,500 | 575 |
| DG-TBFT-000019 | Earth | 6 | 36 | 13 to 25 | 3,500 | 575 |
| DG-TBFT-000017 | Combo | 6 | 36 | 13 to 25 | 3,500 | 575 |
| DG-TBFT-000018 | Rock | 6 | 36 | 13 to 25 | 3,500 | 575 |
| DG-TBFT-000023 | Earth | 8 | 36 | 13 to 25 | 3,500 | 575 |
| DG-TBFT-000021 | Combo | 8 | 36 | 13 to 25 | 3,500 | 575 |
| DG-TBFT-000022 | Rock | 8 | 36 | 13 to 25 | 3,500 | 575 |
Will the EIP Skid Steer Trencher Fit My Machine?
The trencher runs on 13 to 25 GPM of auxiliary flow; EIP sets the limit at 3,500 psi at 16 GPM and 34 hp. It mounts on EIP's slide shift frame, which is not included and is ordered separately, so we confirm the frame with your order. It is 76 inches long, 26 inches tall and 48 inches wide.
Pick the chain by your ground: EIP's earth chain has earth teeth on every station for soft, clean ground with no floaters or roots, and its combo chain mixes 30 percent earth and 70 percent rock teeth for hard soils, roots, soft shale and rocky ground. A rock chain is also offered.
Send us your machine make and model before you order and we will confirm the flow, the frame and the chain for it.
Will this fit my machine?
Pick your machine type, make and model in the compatibility checker to see if this trencher is built for your machine.
Fit promise: A person on our team confirms your machine before your order goes to the maker.
We check the fit with you by phone before you order, Monday to Friday, 9 AM to 5 PM ET.
Why buy from Attachment Empire
-
Authorized dealer
We order factory direct from EIP Manufacturing, with specs and options straight from the source.
-
Fit check by phone
Call (317) 961-7135 with your make and model and we check the fit before you order.
-
Secure checkout
You pay through Shopify's encrypted checkout.
Frequently asked questions
Will this trencher fit my machine?
Pick your machine type, make and model in the compatibility checker on this page to see if this trencher is built for your machine. To have a person check it, call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET.
What does my machine need for this trencher?
From the checklist at the top of this page:
- Requires auxiliary hydraulics, 13 to 25 GPM
- Slide shift mount frame required, sold separately
- Up to 36 inches deep, 4 to 8 inches wide
Who makes this trencher?
EIP Manufacturing builds it. We order it factory direct from EIP Manufacturing.
How do I pay?
Checkout takes Visa, Mastercard, American Express, Discover and Diners Club cards, plus PayPal, Apple Pay, Google Pay and Shop Pay. You pay through Shopify's encrypted checkout.
Can I talk to someone before I order?
Yes. Call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET, or email support@attachmentempire.com.
