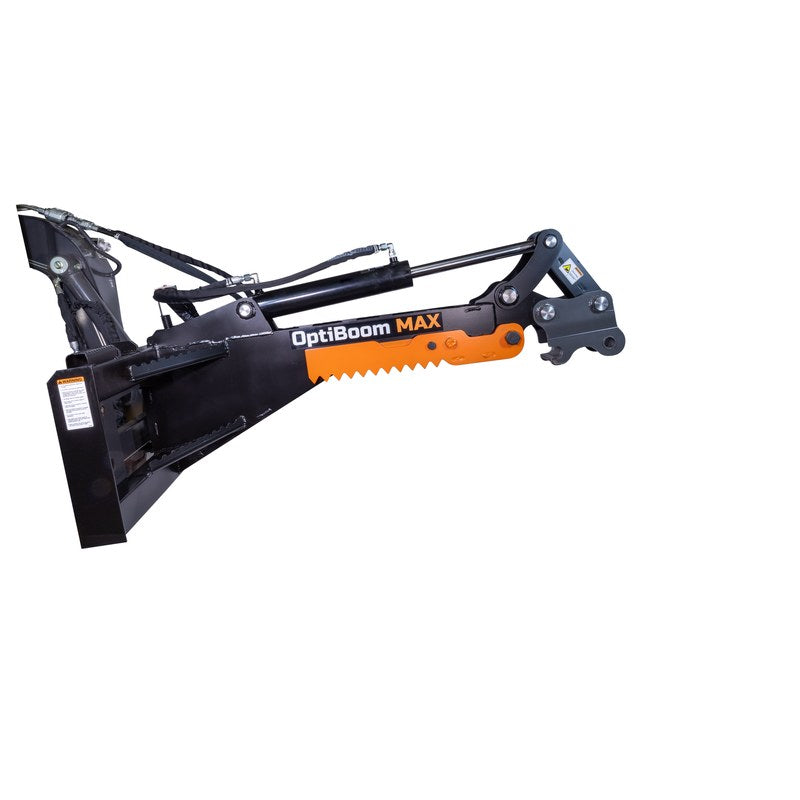

Lowe Manufacturing OptiBoom MAX Skid Steer Boom

Digging a footing, setting a pole or lifting a load over a wall usually means renting a backhoe. Lowe's OptiBoom MAX turns a skid steer into a fronthoe and lift: a rigid box beam boom on the universal skid steer mount, with a quick attach nose that swaps buckets, a thumb, a rake and lifts by moving one pin, in under three minutes by Lowe's account. It reaches 65.5 inches, digs up to 84 inches deep, and Lowe rates the boom at 4,000 pounds.

The OptiBoom MAX (LFHB-60) is built from 5/16 inch side plates and 3/8 inch grade 50 steel, with hardened pins and sleeves at every pivot. It weighs 450 pounds without attachments and runs one 3-1/2 inch cylinder with an 18 inch stroke at up to 3,000 PSI.

Lowe OptiBoom MAX Features

• Quick attach nose: swap attachments by repositioning a single pin
• Rigid box beam of 5/16 inch side plates and 3/8 inch grade 50 steel
• Hardened pins and sleeves at every pivot point
• 3-1/2 inch cylinder, 18 inch stroke, 3,000 PSI maximum
• 4,000 pound boom capacity
• 65.5 inch reach, digs up to 84 inches deep depending on the attachment
• Universal skid steer mount
• Built to order by Lowe Manufacturing, currently 5 to 6 weeks

Lowe OptiBoom MAX Specifications

Lowe OptiBoom MAX Packages

See the Lowe OptiBoom MAX sales sheet (PDF) for the full specification sheet.

Will the Lowe OptiBoom MAX Fit My Skid Steer?

The OptiBoom MAX mounts on the universal skid steer quick attach and runs its cylinder on one set of auxiliary hydraulics at up to 3,000 PSI. Keep the boom, attachment and load within your machine's rated operating capacity.

Send us your machine make and model before you order and we will confirm the fit with Lowe before your order goes in.
