Maxx Attachments 20 Inch Ranch Axe Skid Steer Tree Shear

Cedar and juniper soak up the moisture a pasture needs, and the Maxx 20 inch Ranch Axe is the shear Maxx builds for clearing them. It cuts near ground level with a 1 inch AR400 single bevel blade driven by two 6 inch shear cylinders, and a 3 foot brushguard is built in. Maxx designs it for softwoods; for mesquite, oak, osage orange or locust it points buyers to the 14 inch Ranch Axe. It needs 17 GPM and a skid steer with 2,100 pounds of operating capacity.

The Maxx 20 inch Ranch Axe, model 7434D1, is a tree shear for skid steer loaders working in pasture cleanup. Maxx lists a 1 inch AR400 single bevel replaceable blade, box welded shearing arms, two 6 inch shearing cylinders, 3 inch chrome plated pivot pins with replaceable bearings and a 3 foot brushguard. It comes with jumper hoses and quick disconnects for standard flow line connections.

Maxx 20 Inch Ranch Axe Tree Shear Features for Skid Steers

• Near ground level cutting
• 1 inch AR400 high tensile steel single bevel blades, easy to replace when worn
• Heavy duty box welded shearing arms
• Two 6 inch shearing cylinders with a 3 inch rod and 12 inch stroke
• Convenient, well protected hose routing

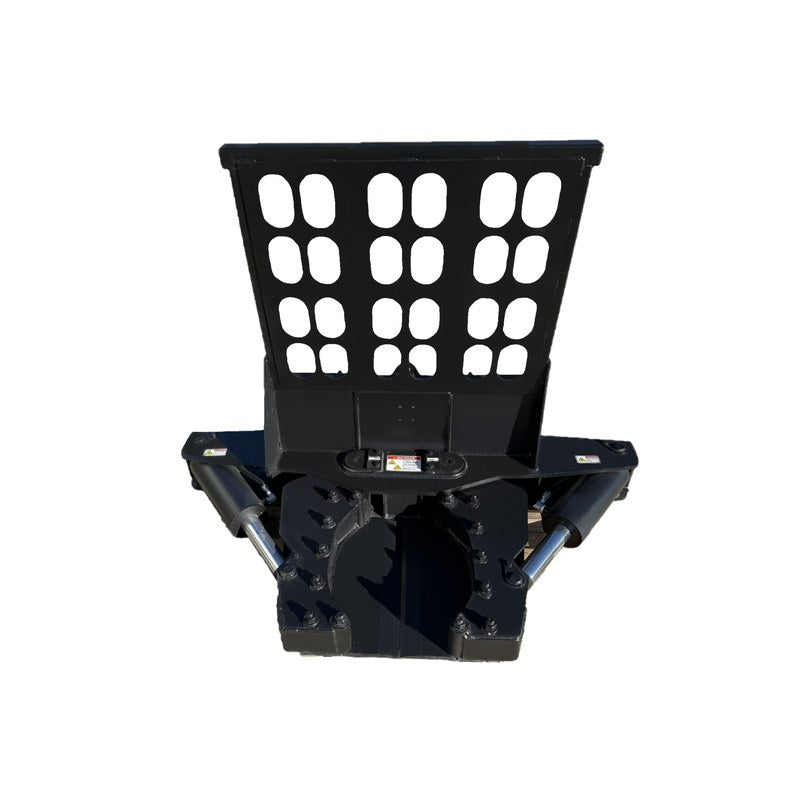

• 3 foot brushguard assembly
• 3 inch chrome plated pivot pins and replaceable bearings
• Jumper hoses and quick disconnects for standard flow lines included
• Optional 5 gallon chemical sprayer system, Maxx part DY116889

Maxx 20 Inch Ranch Axe Specifications

Maxx 20 Inch Ranch Axe Machine Requirements

See the Maxx 20 inch Ranch Axe tree shear spec sheet (PDF) for the figures Maxx publishes.

Will the Maxx 20 Inch Ranch Axe Fit My Skid Steer?

Maxx lists the 20 inch Ranch Axe for skid steers with at least 2,100 pounds of operating capacity and at least 17 GPM of auxiliary flow at no more than 3,000 PSI. It comes with jumper hoses and quick disconnects for standard flow lines.

Send us your skid steer make and model before you order and we will confirm the fit before your order goes to Maxx.
