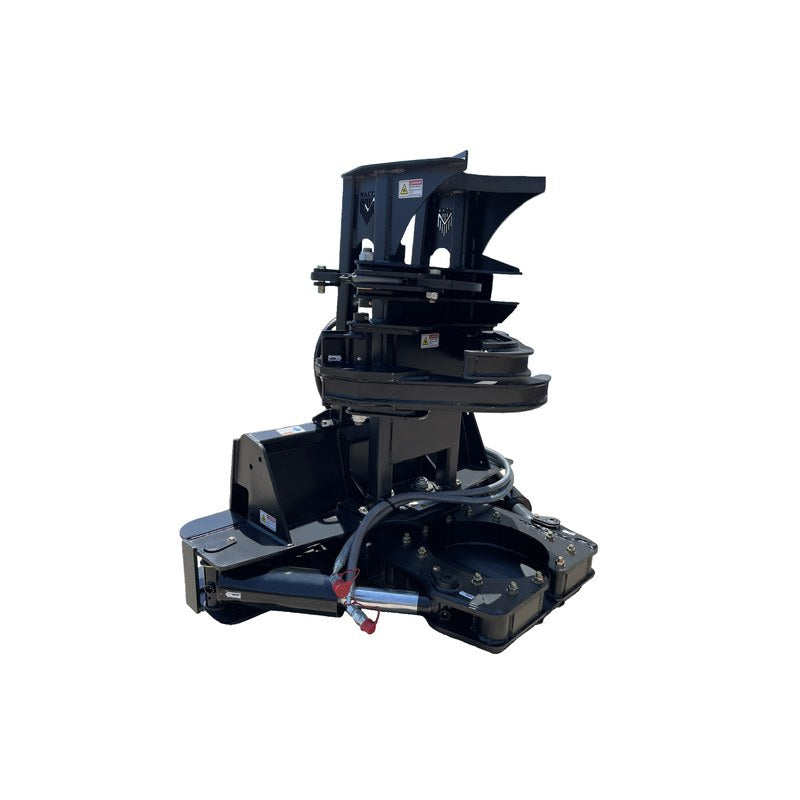

Maxx Attachments Timberwolf Grapple Tree Shear

Thinning timber or clearing a stand tree by tree goes faster when the shear holds each tree before the cut, and the Maxx Timberwolf does that with dual grapple arms. It comes in 14 and 16 inch sizes, and the bunching models add an accumulator arm that holds a cut tree while you shear the next one. Maxx says its larger lines and rod give a 33 percent increase in shear speed. It runs on 15 to 30 GPM and needs a skid steer with 3,000 or 3,400 pounds of operating capacity.

The Maxx Timberwolf is a forestry tree shear for skid steers, offered as a grapple shear or a bunching shear in 14 and 16 inch sizes. Maxx lists 3/4 inch AR400 milled knife edges, an A-572 tower, a shear cylinder with a 5 inch barrel and 3 inch rod, internally routed hoses and guarded hardline, and it comes with hoses to the machine lines and standard flow flat face quick disconnects.

Maxx Timberwolf Grapple Tree Shear Features for Skid Steers

• Dual grapple arms secure the tree before the cut
• Bunching models add an accumulator arm that holds one cut tree while you shear the next
• 14 inch models: solid cast shear arms; 16 inch models: high strength A572 steel fabricated arms
• 3/4 inch AR400 milled knife edges; Maxx says a maintained blade can reach 2,500 hours of use
• Improved blade adjustment and stop mechanism for simple blade adjustment and replacement
• Larger lines, reduced pressure loss and a larger shear cylinder rod, which Maxx says give a 33 percent increase in shear speed
• Hoses routed internally, with guarded hardline
• Runs on 15 to 30 GPM at up to 3,000 PSI; hoses and flat face quick disconnects included

Maxx Timberwolf Tree Shear Specifications

Maxx Timberwolf Hydraulic Requirements

Will the Maxx Timberwolf Tree Shear Fit My Skid Steer?

Maxx lists the 14 inch Timberwolf for skid steers with at least 3,000 pounds of operating capacity and the 16 inch for at least 3,400 pounds, with 15 to 30 GPM of auxiliary flow at no more than 3,000 PSI. The grapple runs through an electro-hydraulic diverter valve, so we confirm the electrical connection your machine needs.

Send us your skid steer make and model before you order and we will confirm the fit before your order goes to Maxx.
