SHIELDS 1/2 Inch Windshield for Bobcat E Series Excavators, M and R

Bobcat built its E25, E35, E42, E45, E50 and E55 compact excavators in an M series and an R series with different front glass, so SHIELDS makes four windows. For R series machines the upper replaces glass 7250149 and the lower 7250150; for M series machines the upper replaces 7209964 and the lower 7179045. All four are flat 1/2 inch polycarbonate with SUPERCOAT on both faces, sold one window at a time in clear or tint. Your glass number or serial number tells us which series you have.

SHIELDS 1/2 inch polycarbonate windows replace the flat front upper and lower glass on Bobcat E Series compact excavators. Bobcat built these machines in two series, M and R, with different glass, and SHIELDS makes the upper and lower for each, coated on both sides with its SUPERCOAT hard coat. Each window is sold on its own in clear or tint.

SHIELDS Bobcat E Series Excavator Windshield Features: a Bobcat Mini Excavator Windshield for M and R Series Machines

• 1/2 inch formed polycarbonate, which SHIELDS rates at more than 260 times the strength of glass at half the weight
• SUPERCOAT hard coat on both sides resists abrasion, so you can keep using your wiper

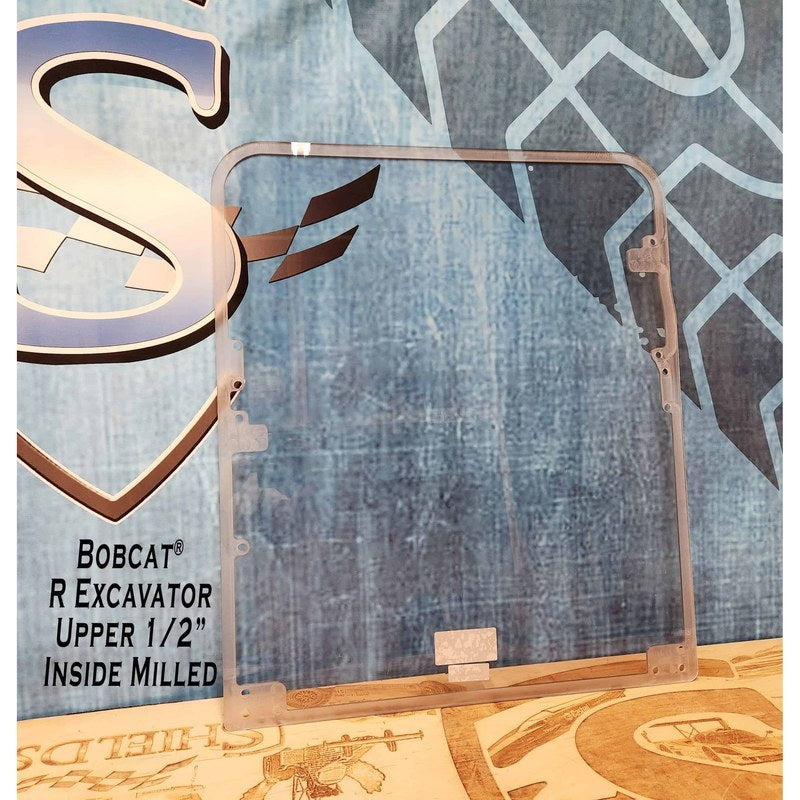

• R series: upper replaces glass 7250149 and lower replaces 7250150
• M series: upper replaces glass 7209964 and lower replaces 7179045
• Flat upper and lower, formed to the shape of the original glass
• Tint is built into the material, not a film; SHIELDS advises against adding aftermarket tint film because the coating will not hold adhesives

Bobcat E Series Upper and Lower Window Part and Glass Numbers

SHIELDS publishes the material data that applies to these Bobcat E Series excavator windows: the SHIELDS polycarbonate windshield technical data sheet (PDF) covers impact strength, light transmission and UV resistance, the SHIELDS SUPERCOAT hard coat data sheet (PDF) covers abrasion and chemical resistance, and the SHIELDS polycarbonate vs glass comparison sheet (PDF) compares weight, sound, heat and light by thickness.

Which Bobcat E Series Excavators Do These Windows Fit?

Fits Bobcat E Series excavators in the M and R series.

SHIELDS lists these windows for the Bobcat E25, E35, E42, E45, E50 and E55.

Your glass number or serial number tells us which series your machine is.

SHIELDS has found three glass versions and two lowers on one Bobcat excavator model, so check your serial number with us before ordering.

Send us your machine make, model and serial number, plus the glass number from your current window if you have it, and we will confirm the fit before you order.
