SHIELDS 1/2 Inch Front Door Window for Bobcat G-Series Skid Steers

The front door glass on a Bobcat G-Series skid steer, glass 6729776, covers a long run of machines, from the 751, 753 and 773 to the A300 and the S130 to S330 and T140 to T320 ranges. SHIELDS makes its 1/2 inch polycarbonate replacement in two millings for the hardware at the bottom of the door: the original, smaller cut for Bobcat hardware and a wider oval cut for the larger aftermarket hardware. SHIELDS duplicates the mounting holes and mills the edges so your door hardware carries over. Both versions come clear or tint.

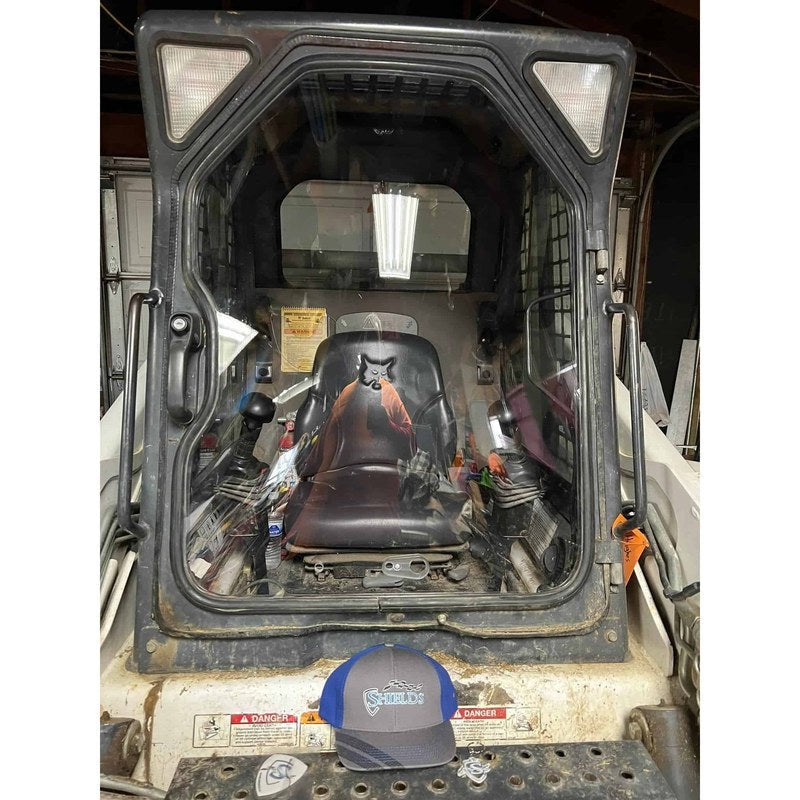

The SHIELDS 1/2 inch front windshield door replaces the glass door on Bobcat G-Series skid steers. SHIELDS forms it from polycarbonate to the shape of the original glass, duplicates the mounting holes and mills the edges so your door hardware carries over, then coats both sides with its SUPERCOAT hard coat. It comes in two hardware millings, for the original Bobcat bottom hardware or the larger oval aftermarket hardware, each in clear or tint.

SHIELDS Bobcat G-Series Front Door Window Features: Bobcat Skid Steer Door Glass Replacement in 1/2 Inch Polycarbonate

• 1/2 inch formed polycarbonate, which SHIELDS rates at more than 260 times the strength of glass at half the weight
• SUPERCOAT hard coat on both sides resists abrasion, so you can keep using your wiper
• Two millings for the bottom hardware: the OEM hardware version has the original, smaller cut and the aftermarket version has a larger oval cut
• Mounting holes duplicated and edges milled so your door hardware carries over
• Tint is built into the material, not a film; SHIELDS advises against adding aftermarket tint film because the coating will not hold adhesives
• Made by SHIELDS, which has made windshields since 1975

Bobcat G-Series Door Window Part and Glass Numbers

SHIELDS publishes the material data that applies to this Bobcat G-Series door window: the SHIELDS polycarbonate windshield technical data sheet (PDF) covers impact strength, light transmission and UV resistance, the SHIELDS SUPERCOAT hard coat data sheet (PDF) covers abrasion and chemical resistance, and the SHIELDS polycarbonate vs glass comparison sheet (PDF) compares weight, sound, heat and light by thickness.

Which Bobcat G-Series Skid Steers Does This Door Window Fit?

Fits these Bobcat G-Series models: 751, 753, 763, 773, 863, 873, 883, 963, A220, A300, S100, S130 to S330 and T140 to T320.

Replaces glass 6729776. Check the hardware at the bottom of your door: the original Bobcat hardware takes the OEM hardware version, and the larger oval aftermarket hardware takes the wide mill version.

Send us your machine make, model and serial number, plus the glass number from your current window if you have it, and we will confirm the fit before you order.
