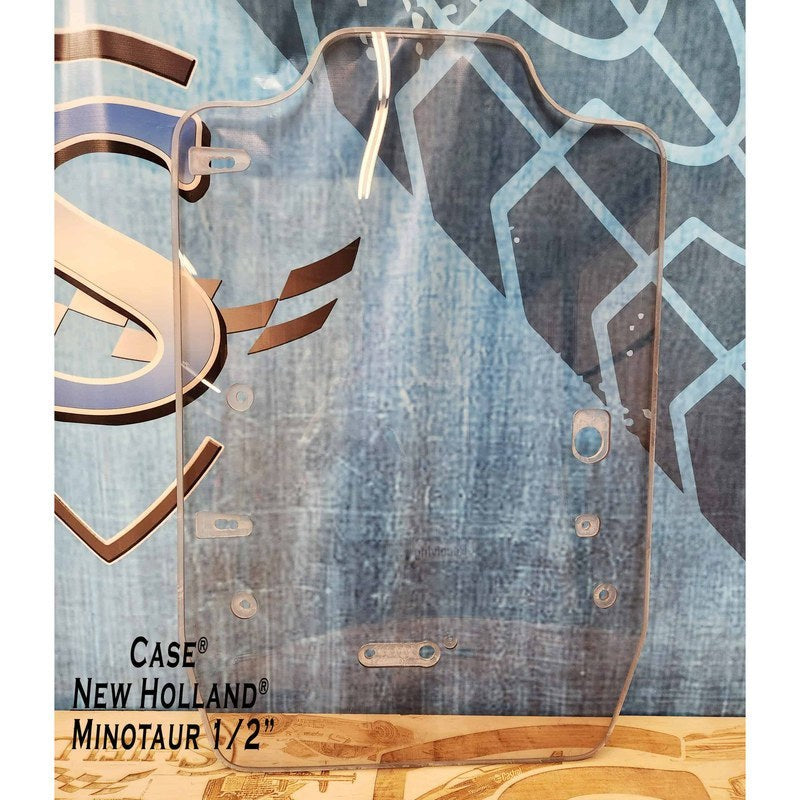

SHIELDS 1/2 Inch Front Door Window for Case Minotaur Skid Steers

The Case Minotaur DL550 front door uses curved glass 91723777, and SHIELDS lists the same window for the TV620, TV620B, DL550B and C316. This SHIELDS replacement is 1/2 inch polycarbonate formed to the same curve, with the mounting holes duplicated and the edges milled so the original door hardware goes back on. Both faces carry SHIELDS' SUPERCOAT hard coat, which resists abrasion so you can keep using the wiper, and you can choose clear or tint. Send us the serial number and the glass number from your door and we will confirm the fit.

The SHIELDS 1/2 inch front windshield door replaces the glass door on the Case Minotaur DL550 and the other models SHIELDS lists for the same door. It is curved like the original glass and coated on both sides with SHIELDS' SUPERCOAT hard coat. Choose clear or tint.

SHIELDS Case Minotaur Front Door Window Features: Case Skid Steer Door Glass Replacement

• 1/2 inch formed polycarbonate, which SHIELDS rates at more than 260 times the strength of glass at half the weight
• SUPERCOAT hard coat on both sides resists abrasion, so you can keep using your wiper
• Curved like the original glass
• Drop-in replacement: mounting holes duplicated and edges milled so the original door hardware carries over
• Tint is built into the material, not a film; SHIELDS advises against adding aftermarket tint film because the coating will not hold adhesives
• Made by SHIELDS, which has made windshields since 1975

Case Minotaur Door Window Part and Glass Numbers

SHIELDS publishes the material data that applies to this Case Minotaur door window: the SHIELDS polycarbonate windshield technical data sheet (PDF) covers impact strength, light transmission and UV resistance, the SHIELDS SUPERCOAT hard coat data sheet (PDF) covers abrasion and chemical resistance, and the SHIELDS polycarbonate vs glass comparison sheet (PDF) compares weight, sound, heat and light by thickness.

Which Case Minotaur Machines Does This Door Window Fit?

Fits these models: TV620, TV620B, DL550, DL550B and C316.

Replaces glass 91723777.

Send us your machine make, model and serial number, plus the glass number from your current window if you have it, and we will confirm the fit before you order.
