SHIELDS 1/2 Inch Front Door Window for CAT C-Series Skid Steers

CAT C-Series skid steers and track loaders, from the 246C and 262C to the 277C, 287C, 289C and 299C, take front door glass 258-4071 or 380-9966. SHIELDS makes the 1/2 inch polycarbonate replacement curved like the original, with its SHIELDS Seal gasket installed so it drops into the frame, and SUPERCOAT on both sides. Choose clear or tint. Before you order, read the glass number on your door: SHIELDS has seen C models with a D window and D models with a C window, and the two bottoms are very different.

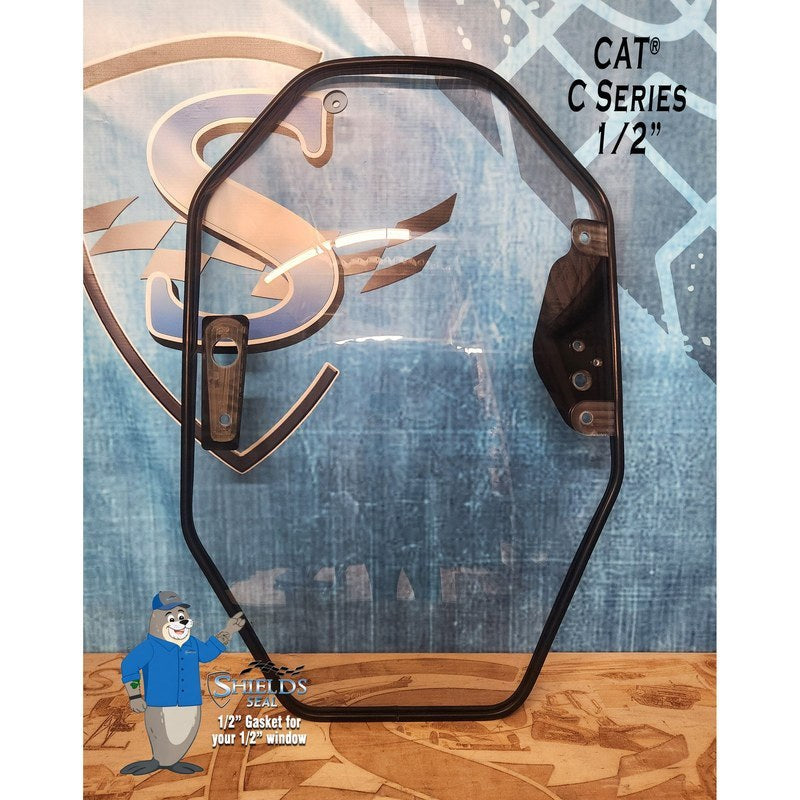

The SHIELDS 1/2 inch front windshield door replaces the glass door on CAT C-Series skid steers. It is curved like the original glass, coated on both sides with SHIELDS' SUPERCOAT hard coat, and comes with SHIELDS' own 1/2 inch gasket already installed. Choose clear or tint.

SHIELDS CAT C-Series Front Door Window Features: CAT Skid Steer Door Replacement With the SHIELDS Seal Gasket

• 1/2 inch formed polycarbonate, which SHIELDS rates at more than 260 times the strength of glass at half the weight
• SUPERCOAT hard coat on both sides resists abrasion, so you can keep using your wiper
• The 1/2 inch window comes with SHIELDS' own 1/2 inch gasket, the SHIELDS Seal, already installed, and still drops in like the original
• Curved like the original glass, with the mounting holes duplicated so your door hardware carries over
• Tint is built into the material, not a film; SHIELDS advises against adding aftermarket tint film because the coating will not hold adhesives
• Made by SHIELDS, which has made windshields since 1975

CAT C-Series Door Window Part and Glass Numbers

SHIELDS publishes the material data that applies to this CAT C-Series door window: the SHIELDS polycarbonate windshield technical data sheet (PDF) covers impact strength, light transmission and UV resistance, the SHIELDS SUPERCOAT hard coat data sheet (PDF) covers abrasion and chemical resistance, and the SHIELDS polycarbonate vs glass comparison sheet (PDF) compares weight, sound, heat and light by thickness.

Which CAT C-Series Skid Steers Does This Door Window Fit?

Fits these CAT models: 246C, 256C, 262C, 262C2, 272C, 272D, 272DXHP, 277C, 277C2, 279C, 279C2, 287C, 289C, 289C2, 297C, 299C, 299D and 299DXHP.

Replaces glass 258-4071 and 380-9966. SHIELDS notes that some C models carry a D window and some D models carry a C window, and the bottoms of the two windows are very different, so check the glass number on your current door.

Send us your machine make, model and serial number, plus the glass number from your current window if you have it, and we will confirm the fit before you order.
