SHIELDS 1/2 Inch Front Door Window for CAT D-Series Skid Steers

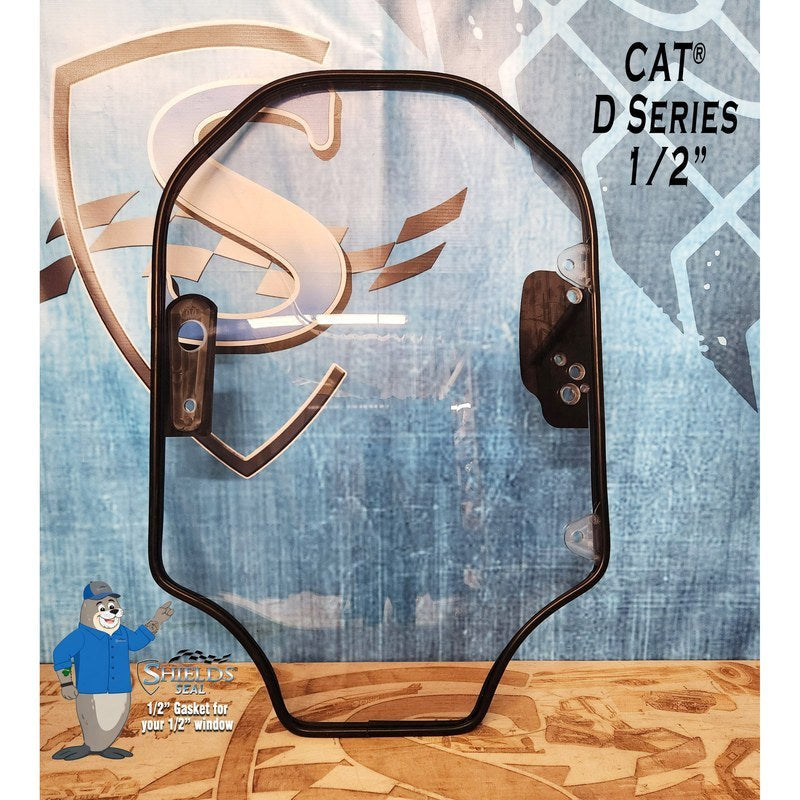

For CAT D-Series skid steers and track loaders, including the 259D, 262D, 289D and 299D and their D2 and D3 versions, SHIELDS makes a 1/2 inch polycarbonate front door window that replaces glass 345-6230. It comes with the SHIELDS Seal, SHIELDS' own 1/2 inch gasket, already installed, so it fits the door the way the original glass did, and both faces carry SUPERCOAT so you can keep using the wiper. Choose clear or tint. Some D machines carry a C window, so match the glass number on your door before ordering.

The SHIELDS 1/2 inch front windshield door replaces the glass door on CAT D-Series skid steers. It is curved like the original glass, coated on both sides with SHIELDS' SUPERCOAT hard coat, and comes with SHIELDS' own 1/2 inch gasket already installed. Choose clear or tint.

SHIELDS CAT D-Series Front Door Window Features: CAT Skid Steer Door Glass Replacement for the 259D to 299D

• 1/2 inch formed polycarbonate, which SHIELDS rates at more than 260 times the strength of glass at half the weight
• SUPERCOAT hard coat on both sides resists abrasion, so you can keep using your wiper
• The 1/2 inch window comes with SHIELDS' own 1/2 inch gasket, the SHIELDS Seal, already installed, and still drops in like the original
• Curved like the original glass, with the mounting holes duplicated so your door hardware carries over
• Tint is built into the material, not a film; SHIELDS advises against adding aftermarket tint film because the coating will not hold adhesives
• Made by SHIELDS, which has made windshields since 1975

CAT D-Series Door Window Part and Glass Numbers

SHIELDS publishes the material data that applies to this CAT D-Series door window: the SHIELDS polycarbonate windshield technical data sheet (PDF) covers impact strength, light transmission and UV resistance, the SHIELDS SUPERCOAT hard coat data sheet (PDF) covers abrasion and chemical resistance, and the SHIELDS polycarbonate vs glass comparison sheet (PDF) compares weight, sound, heat and light by thickness.

Which CAT D-Series Skid Steers Does This Door Window Fit?

Fits these CAT models: 226D, 226D3, 232D, 232D3, 236D, 236D3, 242D, 242D3, 246D, 246D3, 249D, 249D3, 257D, 257D3, 259D, 259D3, 262D, 262D3, 272D, 272D2, 272D3, 277D, 287D, 289D, 289D3, 297D, 297D2, 297DXHP, 297D2XHP, 299D, 299D2, 299D3, 299DXHP, 299D2XHP and 299D3XHP.

Replaces glass 345-6230. SHIELDS notes that some C models carry a D window and some D models carry a C window, and the bottoms differ, so check the glass number on your current door. The 272D, 299D and 299DXHP also appear on SHIELDS' C-Series list.

Send us your machine make, model and serial number, plus the glass number from your current window if you have it, and we will confirm the fit before you order.
