SHIELDS 1/2 Inch Door Window for John Deere Small Frame G and P

The small frame John Deere skid steers, the 312GR, 314G, 316GR, 317G and 318G and the 316P, 317P and 318P, take a door window that SHIELDS makes to replace glass T361540. It is 1/2 inch polycarbonate, curved like the original, with SHIELDS' 1/2 inch SHIELDS Seal gasket installed and SUPERCOAT on both faces, offered clear or tint. SHIELDS notes these models have been known to carry other glass numbers it does not make yet, so read the number on your door before you order, or send it to us with your serial number.

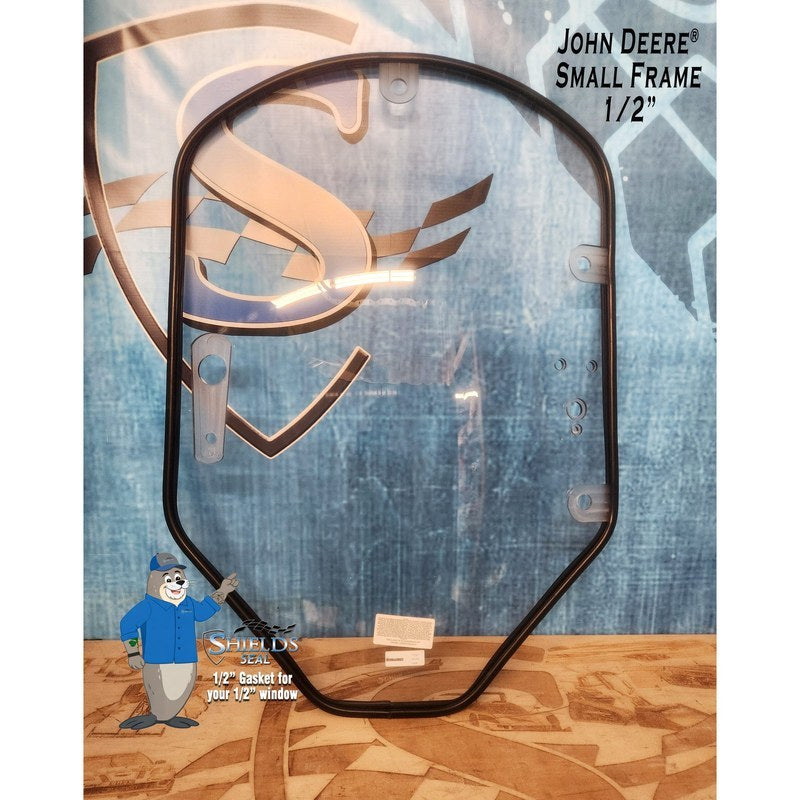

The SHIELDS 1/2 inch front windshield door replaces the glass door on John Deere small frame G and P series skid steers. It is curved like the original glass, coated on both sides with SHIELDS' SUPERCOAT hard coat, and comes with SHIELDS' own 1/2 inch gasket already installed. Choose clear or tint.

SHIELDS John Deere Small Frame G and P Front Door Window Features: a John Deere Skid Steer Front Door Window

• 1/2 inch formed polycarbonate, which SHIELDS rates at more than 260 times the strength of glass at half the weight
• SUPERCOAT hard coat on both sides resists abrasion, so you can keep using your wiper
• The 1/2 inch window comes with SHIELDS' own 1/2 inch gasket, the SHIELDS Seal, already installed, and still drops in like the original
• Curved like the original glass, with the mounting holes duplicated so your door hardware carries over
• Tint is built into the material, not a film; SHIELDS advises against adding aftermarket tint film because the coating will not hold adhesives
• Made by SHIELDS, which has made windshields since 1975

John Deere Small Frame Door Window Part and Glass Numbers

SHIELDS publishes the material data that applies to this John Deere small frame door window: the SHIELDS polycarbonate windshield technical data sheet (PDF) covers impact strength, light transmission and UV resistance, the SHIELDS SUPERCOAT hard coat data sheet (PDF) covers abrasion and chemical resistance, and the SHIELDS polycarbonate vs glass comparison sheet (PDF) compares weight, sound, heat and light by thickness.

Which John Deere Small Frame Skid Steers Does This Door Window Fit?

Fits these John Deere small frame models: 312GR, 314G, 316GR, 317G, 318G, 316P, 317P and 318P.

Replaces glass T361540. SHIELDS notes these models have been known to carry other glass numbers that it does not make yet, so check the number on your current door.

Send us your machine make, model and serial number, plus the glass number from your current window if you have it, and we will confirm the fit before you order.
