SHIELDS 1/2 Inch Front Windshield for JCB 135 to 320 Skid Steers

JCB skid steers and compact track loaders from the 135 to the 320, plus the 3TS-8T and 3TS-8W, come with one of two front windshield layouts. Cabs from March 2018 and newer have the wiper on the side; older cabs may have it along the bottom. SHIELDS makes a 1/2 inch polycarbonate windshield for each: the side wiper window replaces glass 400/E8646 with an etched edge for a glue-in install, and the bottom wiper window replaces glass 332/X5157. Both come clear or tint with SUPERCOAT on both sides.

This SHIELDS 1/2 inch polycarbonate front windshield replaces the glass on JCB skid steers and compact track loaders from the 135 to the 320. JCB built two versions of this cab, with the wiper on the side or along the bottom, and SHIELDS makes a window for each, coated on both sides with its SUPERCOAT hard coat. Choose clear or tint.

SHIELDS JCB 135 to 320 Front Windshield Features: JCB Skid Steer Windshield Replacement for Side and Bottom Wiper Cabs

• 1/2 inch formed polycarbonate, which SHIELDS rates at more than 260 times the strength of glass at half the weight
• SUPERCOAT hard coat on both sides resists abrasion, so you can keep using your wiper

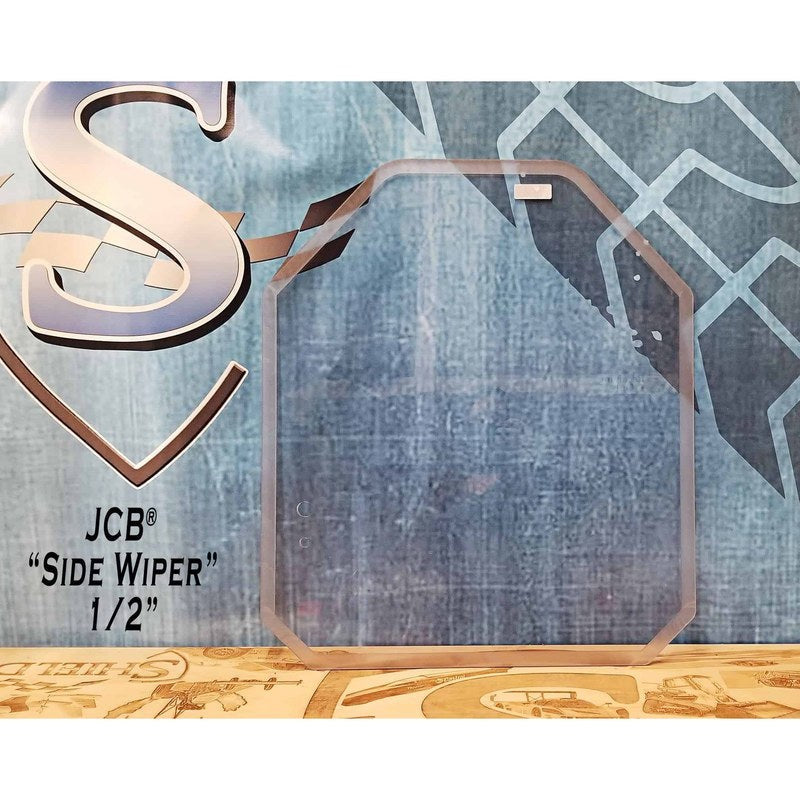

• Side wiper version replaces glass 400/E8646; bottom wiper version replaces glass 332/X5157
• The side wiper part is SHIELDS' etched edge version, prepped for a glue-in install; SHIELDS recommends its SHIELDS Caulk for the bond
• Flat like the original glass
• Tint is built into the material, not a film; SHIELDS advises against adding aftermarket tint film because the coating will not hold adhesives

JCB 135 to 320 Windshield Part and Glass Numbers

SHIELDS publishes the material data that applies to this JCB skid steer windshield: the SHIELDS polycarbonate windshield technical data sheet (PDF) covers impact strength, light transmission and UV resistance, the SHIELDS SUPERCOAT hard coat data sheet (PDF) covers abrasion and chemical resistance, and the SHIELDS polycarbonate vs glass comparison sheet (PDF) compares weight, sound, heat and light by thickness.

Which JCB Skid Steers Does This Windshield Fit?

Fits these JCB models: 135, 150, 175, 190, 205, 210, 215, 225, 250, 260, 270, 280, 300, 320, 3TS-8T and 3TS-8W.

SHIELDS notes that cabs from March 2018 and newer have the wiper on the side, and older cabs may have it along the bottom, so check where your wiper mounts.

If your current side wiper window sits in a gasket rather than glue, tell us before you order: SHIELDS makes a separate milled edge version for gasket installs. SHIELDS finds many variations in these cabs, so a photo of your window helps.

Send us your machine make, model and serial number, plus the glass number from your current window if you have it, and we will confirm the fit before you order.
