SHIELDS 1/2 Inch Front Windshield for Link-Belt X4 Series Excavators

Link-Belt X4 Series excavators, from the 130 X4 and 210 X4 to the 350 X4 LF, 490 X4 and 750 X4, use a flat front upper, glass KHN25620, and a curved lower, glass KHN25610. SHIELDS makes both in 1/2 inch polycarbonate shaped like the originals, duplicating the mounting holes and milling the edges so the original hardware carries over. SUPERCOAT on both faces lets the wiper keep running. You can buy each window on its own, in clear or tint, and we can confirm the fit from your serial number.

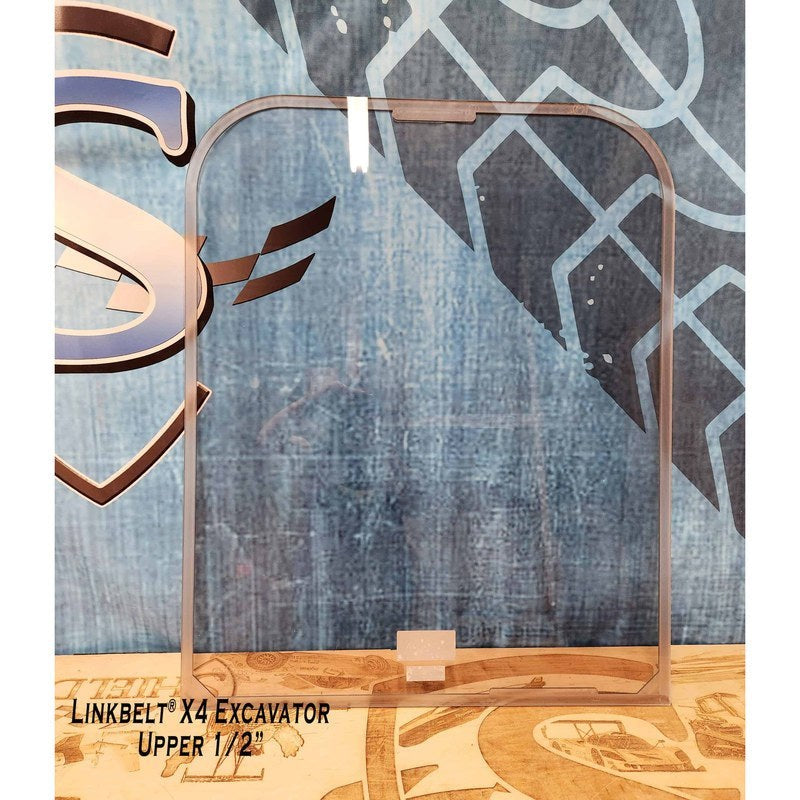

SHIELDS 1/2 inch polycarbonate windows replace the front upper and lower glass on Link-Belt X4 Series excavators. The upper is flat and the lower is curved, like the original glass, and SHIELDS coats both sides with its SUPERCOAT hard coat. Each window is sold on its own in clear or tint.

SHIELDS Link-Belt X4 Series Excavator Windshield Features: an Excavator Windshield With a Flat Upper and Curved Lower

• 1/2 inch formed polycarbonate, which SHIELDS rates at more than 260 times the strength of glass at half the weight
• SUPERCOAT hard coat on both sides resists abrasion, so you can keep using your wiper
• Upper replaces glass KHN25620; lower replaces KHN25610
• Flat upper and curved lower, formed to the shape of the original glass
• Drop-in replacement: mounting holes duplicated and edges milled so the original hardware carries over
• Tint is built into the material, not a film; SHIELDS advises against adding aftermarket tint film because the coating will not hold adhesives

Link-Belt X4 Series Upper and Lower Window Part and Glass Numbers

SHIELDS publishes the material data that applies to these Link-Belt X4 windows: the SHIELDS polycarbonate windshield technical data sheet (PDF) covers impact strength, light transmission and UV resistance, the SHIELDS SUPERCOAT hard coat data sheet (PDF) covers abrasion and chemical resistance, and the SHIELDS polycarbonate vs glass comparison sheet (PDF) compares weight, sound, heat and light by thickness.

Which Link-Belt X4 Excavators Do These Windows Fit?

Fits Link-Belt X4 Series excavators.

SHIELDS lists these windows for the Link-Belt 130 X4, 145 X4, 160 X4, 210 X4, 210 X4 LF, 245 X4, 250 X4, 250 X4 LF, 300 X4, 350 X4, 350 X4 LF, 490 X4 and 750 X4.

Send us your machine make, model and serial number, plus the glass number from your current window if you have it, and we will confirm the fit before you order.
