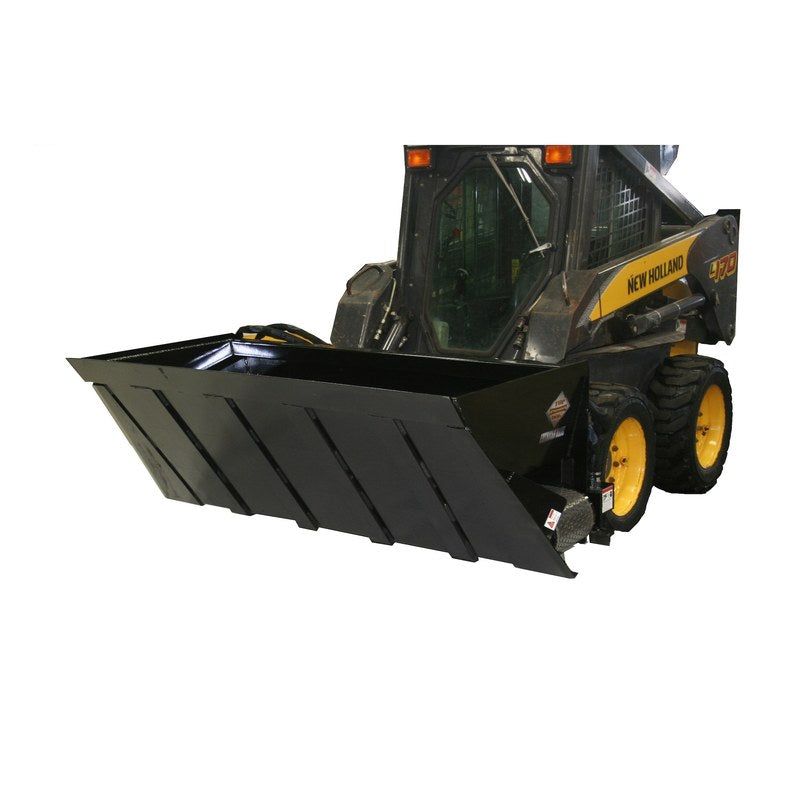

Top Dog Attachments Dual Side Flow Bucket for Skid Steers

A side flow bucket scoops material like a regular bucket, then feeds it out one side or the other on a belt, so you can lay gravel along a driveway edge or feed out silage without a separate spreader. Top Dog drives the belt with two motors, one for each direction, and gives each its own control valve, so you set the speed per side and can run one side faster than the other. Choose the heavy material bucket, or the taller light material bucket with a beater bar, in 72 or 84 inches.

Both run on 15 to 20 GPM of auxiliary flow through flat face couplers. Top Dog fits a 5/16 inch two ply asphalt belt or a chevron V belt; tell us which one you want when you order. On the light material bucket, a third motor turns a beater bar that keeps sawdust, mulch and silage from bridging.

Top Dog Side Discharge Bucket Features: Heavy and Light Material

• Dual side discharge on a belt, left or right
• Two 4.9 cubic inch belt motors, each on its own speed valve
• Heavy material model for rock, limestone, asphalt, sand and gravel
• Light material model with a beater bar on an 18.6 cubic inch motor for sawdust, mulch and silage
• 5/16 inch two ply asphalt belt or chevron V belt, your choice
• Flat face couplers, 1/2 inch hoses, 1 inch pillow block bearings
• Typical lead time from Top Dog is about 4 weeks, depending on the product

Top Dog Heavy Material Side Flow Bucket Specifications

Top Dog Light Material Side Flow Bucket Specifications

Top Dog Side Flow Bucket Hydraulics and Build

Will the Top Dog Side Flow Bucket Fit My Machine?

Top Dog builds it for skid steers, and for tractors with the right mounting plate and 15 to 20 GPM of auxiliary flow. It mounts on the universal skid steer quick attach. Top Dog lists 2,500 PSI as both the minimum and maximum pressure, so tell us your machine's auxiliary pressure and we confirm it with Top Dog.

Send us your machine make, model and auxiliary flow before you order.
