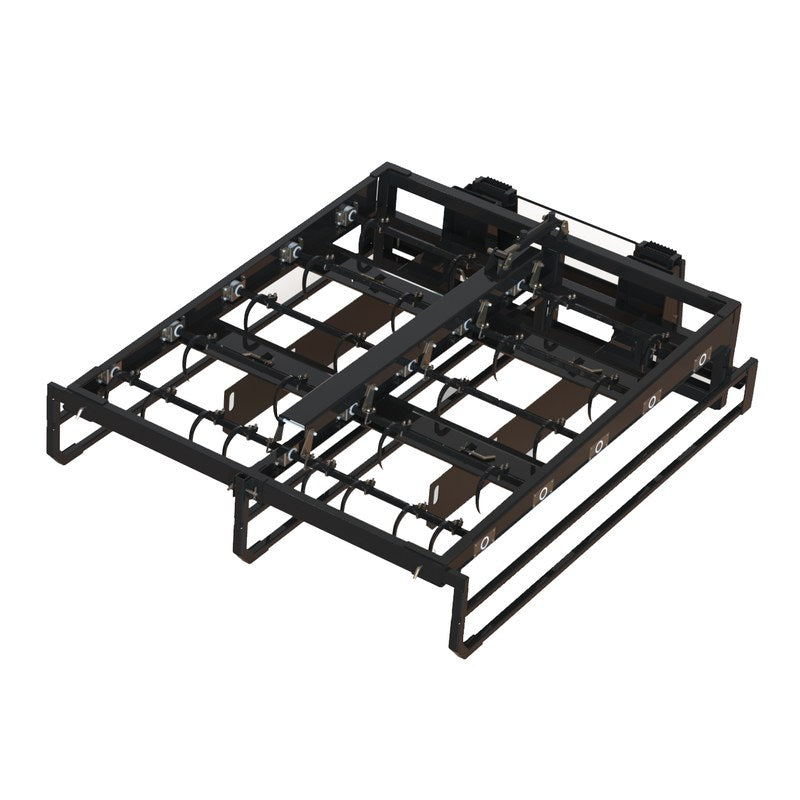

Top Dog Attachments Square Bale Accumulator Grapple

Small square bales go faster when you move them in groups instead of one at a time. Top Dog's bale accumulator grapple lets one operator grab a group of bales from the field and stack them: 8 to 10 square bales with the 10 bale model, or up to 6 with the compact 6 bale model. Ductile iron hooks close on the bales from a welded 2 by 8 inch cross tube cylinder, and the side panels come off to make loading and stacking easier.

The 10 bale model comes with the universal skid steer quick attach or a Euro loader mount. Both models use machined nylon bushings and a laser cut, formed frame.

Top Dog Square Bale Accumulator Grapple Features

• Lifts 8 to 10 square bales (10 bale model) or up to 6 (6 bale model)
• Removable side panels for loading and stacking
• One operator handles pickup and stacking
• 2 by 8 inch welded cross tube cylinder with ORB ports
• 65-45-12 ductile iron hooks and machined nylon bushings
• 3/8 inch hoses rated to 3,000 PSI
• Typical lead time from Top Dog is about 4 weeks, depending on the product

Top Dog Bale Accumulator Specifications

Top Dog's 10 bale accumulator spec sheet covers the 10 bale model.

Which Top Dog Bale Accumulator Fits My Machine?

Pick the 10 bale model with the universal skid steer quick attach for a skid steer or a tractor loader with that plate, or with the Euro mount for a Euro or Global style tractor loader. The 6 bale model is Top Dog's compact version. Every model runs on your auxiliary hydraulics and connects through a hose kit that Top Dog sells separately in 6, 7 and 8 foot lengths.

Send us your machine make and model before you order, and we confirm the model and the hose kit you need with Top Dog.
