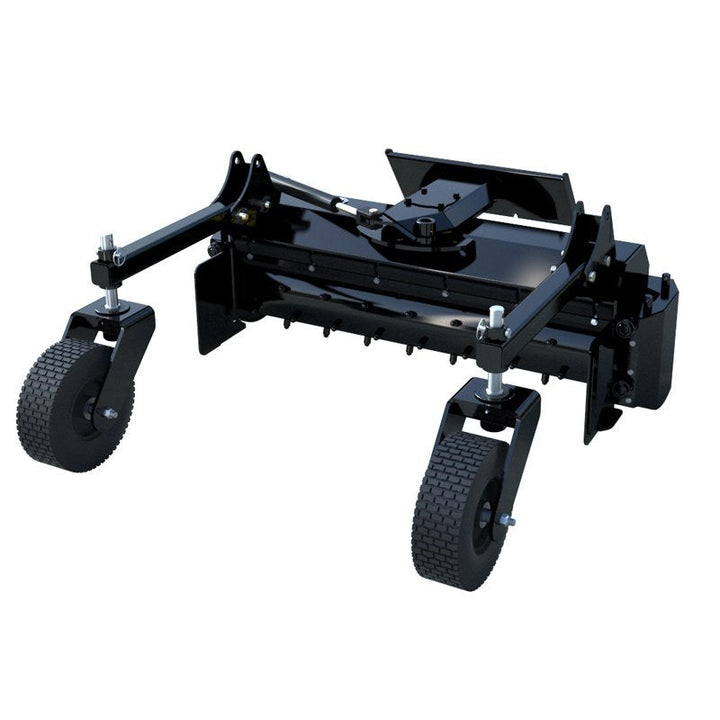

EIP Manufacturing Mini Skid Steer Power Rake, 48 and 60 Inch
$8,183.00
Berlon Industries MISC Mini Skid Steer Soil Conditioner
$8,056.00- Requires auxiliary hydraulics, 12 to 17 GPM (20 GPM maximum)
- Mini mount for Vermeer and New Holland mini skid steers
- 48 inch rake, manual or hydraulic angle, 560 pounds
Shipping
- Orders under $5,000$349 flat
- Orders of $5,000 or moreFree
- Items over 2,000 lb, orders under $20,000$999 flat
- Items over 2,000 lb, orders of $20,000 or moreFree
🚚 U.S. delivery · timing varies by product
✓ Product-specific fitment
Berlon Industries Soil Conditioner Overview

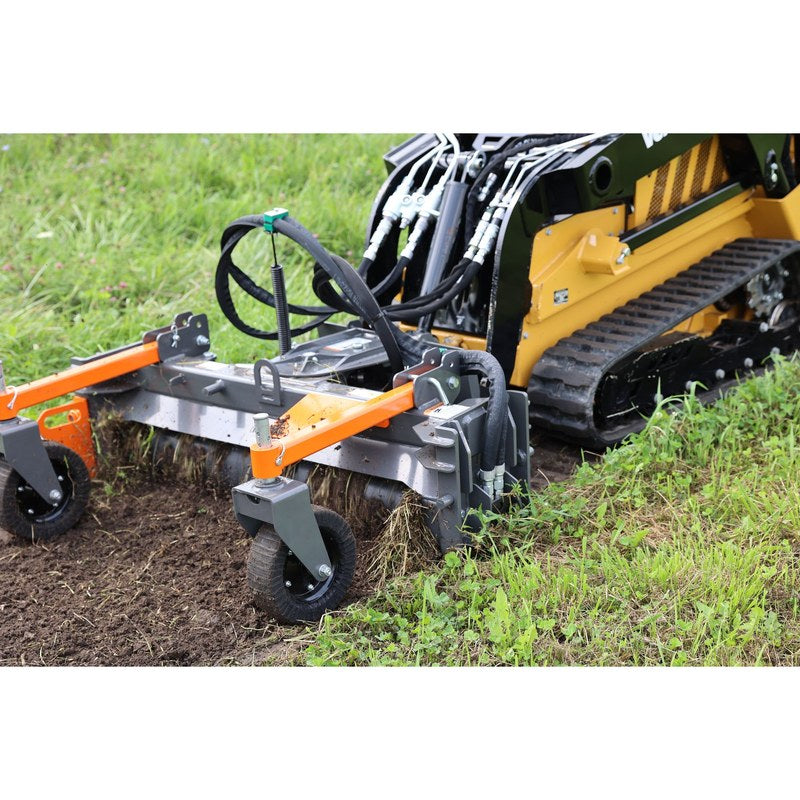

Finish work on a lawn, bed or pad needs soil broken up and leveled before seed or sod goes down. Berlon's MISC mini soil conditioner turns rough ground into a clean, workable surface with a direct drive motor, a 45 tooth drum built around an 8 inch tube and carbide tipped teeth set in a V pattern for even conditioning. Caster wheels with 7 height positions set the depth, and it angles 27 degrees each way. Choose manual angle or one of three hydraulic angle setups.
The MISC-48 is Berlon's soil conditioner for mini loaders, with a 48 inch rake width at center and 43 inches at full angle. Berlon pitches it at pros who want clean finish work and little downtime.
Berlon Mini Skid Steer Soil Conditioner Features
- Direct drive motor: 12 to 17 GPM operating, 20 GPM maximum
- 117 to 162 RPM operating, 203 RPM maximum, with high tooth tip speeds
- 45 tooth drum on an 8 inch diameter, 1/2 inch wall tube
- 1.25 inch fixed tungsten carbide teeth, or optional bolt-in grade 8 replaceable teeth
- Caster wheels with 7 height positions, roller bearing pivots, greasable hubs and zero-flat tires
- End spoil plates mount front or back, with a stow spot on the attachment
- Grade 50 steel in high stress areas, hardened pivot pins, debris guards and a fixed, non-floating mount
- Built to order by Berlon Industries, currently 5 to 6 weeks
Berlon MISC Configurations
| Model | Angle control |
|---|---|
| MISC-48M | Manual angle (standard) |
| MISC-48H | Hydraulic angle, with hoses and couplers (2 sets of hose lines) |
| MISC-48E | Hydraulic angle, with manifold and 14 pin plug |
| MISC-48S | Hydraulic angle, with manifold and wire harness |
Berlon MISC Specifications
| Spec | Berlon MISC-48 |
|---|---|
| Overall width | 55 inches |
| Rake width, center | 48 inches |
| Rake width at 27 degrees | 43 inches |
| Angle range | 27 degrees left and right |
| Working height | 21.5 inches |
| Depth | 47 inches |
| Weight | 560 pounds |
| Hydraulic flow | 12 to 17 GPM, 20 GPM maximum |
Will the Berlon Soil Conditioner Fit My Mini Skid Steer?
Berlon builds it with the MIUNV mini mount, which Berlon lists for Vermeer and New Holland mini skid steers. Berlon also makes Toro Dingo style (MPDG-1), Ditch Witch (MIDW), Boxer (MIBOX) and Bobcat mini (MIBOB-1) mounts; tell us your machine and we will confirm the mount before you order. The drum motor runs on the mini loader's auxiliary hydraulics at 12 to 17 GPM. The hydraulic angle models add a second set of hose lines (MISC-48H) or a manifold that switches with a 14 pin plug (MISC-48E) or a wire harness (MISC-48S); tell us which your machine supports.
Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
Will this fit my machine?
Pick your machine type, make and model in the compatibility checker to see if this soil conditioner is built for your machine.
Fit promise: A person on our team confirms your machine before your order goes to the maker.
We check the fit with you by phone before you order, Monday to Friday, 9 AM to 5 PM ET.
Why buy from Attachment Empire
-
Authorized dealer
We order factory direct from Berlon Industries, with specs and options straight from the source.
-
Fit check by phone
Call (317) 961-7135 with your make and model and we check the fit before you order.
-
Secure checkout
You pay through Shopify's encrypted checkout.
Frequently asked questions
Will this soil conditioner fit my machine?
Pick your machine type, make and model in the compatibility checker on this page to see if this soil conditioner is built for your machine. To have a person check it, call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET.
What does my machine need for this soil conditioner?
From the checklist at the top of this page:
- Requires auxiliary hydraulics, 12 to 17 GPM (20 GPM maximum)
- Mini mount for Vermeer and New Holland mini skid steers
- 48 inch rake, manual or hydraulic angle, 560 pounds
Who makes this soil conditioner?
Berlon Industries builds it. We order it factory direct from Berlon Industries.
How do I pay?
Checkout takes Visa, Mastercard, American Express, Discover and Diners Club cards, plus PayPal, Apple Pay, Google Pay and Shop Pay. You pay through Shopify's encrypted checkout.
Can I talk to someone before I order?
Yes. Call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET, or email support@attachmentempire.com.
