Berlon Industries MISC Mini Skid Steer Soil Conditioner
$8,056.00
EIP Manufacturing Skid Steer Power Rake, 72 and 90 Inch
$12,317.00- Requires auxiliary hydraulics, 17 to 24 GPM (standard) or 17 to 30 GPM (high flow)
- Hydraulic slew models need an electrical harness, not included
- Universal skid steer quick attach; standard flow models up to 67 HP
Shipping
- Orders under $5,000$349 flat
- Orders of $5,000 or moreFree
- Items over 2,000 lb, orders under $20,000$999 flat
- Items over 2,000 lb, orders of $20,000 or moreFree
🚚 U.S. delivery · timing varies by product
✓ Product-specific fitment

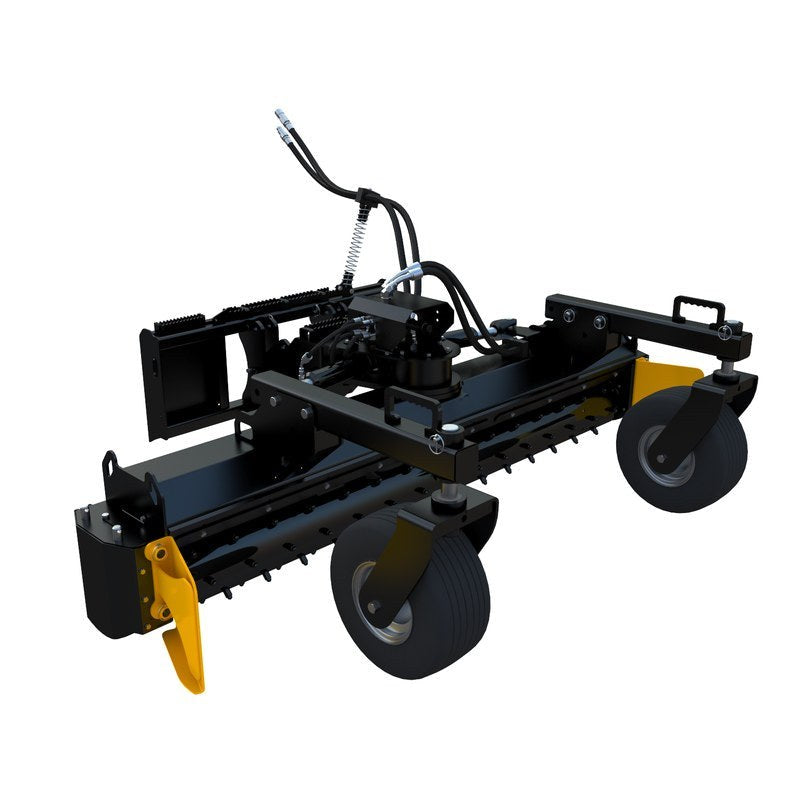

EIP Manufacturing Power Rake Overview
Getting rough ground ready for seed, sod or new landscaping is slow work with a box blade and hand rakes. The EIP Manufacturing skid steer power rake does the job with one attachment: it pulverizes the soil, grades and levels it, and rakes out old lawn, weeds and debris. Pick a 72 or 90 inch drum, then a manual or hydraulic slew that angles the rake 25 degrees each way. Standard flow models run on 17 to 24 GPM and high flow models on 17 to 30 GPM.
The EIP Skid Steer Power Rake grades, levels and rakes while it pulverizes the soil, so one attachment prepares a seedbed or turf area, takes out old lawn and weeds and clears debris. It comes with a 72 or 90 inch drum, and the rake angles 25 degrees either way by hydraulic slew (standard or high flow models) or manual slew (high flow models).
EIP Manufacturing Skid Steer Power Rake Features: a Power Rake for Skid Steer Site Prep
- Grades, levels, rakes and clears debris while it pulverizes the soil
- 72 or 90 inch drum, 84 or 102 inches overall
- Angles 25 degrees each way, 50 degrees total, by manual or hydraulic slew
- Standard flow models run on 17 to 24 GPM, high flow models on 17 to 30 GPM
- Pressure relief setting included on the high flow models
- For seedbed, turf, landscape and site preparation work
EIP Skid Steer Power Rake Specifications by Model
| Model | Drum width (in) | Overall width (in) | Length, wheels up or down (in) | Slew | Oil flow (GPM) | Max pressure (psi) |
|---|---|---|---|---|---|---|
| DG-PR-720004 | 72 | 84 | 49 or 69.5 | Manual | 17 to 30 | 3,500 |
| DG-PR-720006 | 72 | 84 | 49 or 69.5 | Hydraulic | 17 to 24 | 3,500 |
| DG-PR-720003 | 72 | 84 | 49 or 69.5 | Hydraulic | 17 to 30 | 3,500 |
| DG-PR-900004 | 90 | 102 | 49 or 69.5 | Manual | 17 to 30 | 3,500 |
| DG-PR-900006 | 90 | 102 | 49 or 69.5 | Hydraulic | 17 to 24 | 3,500 |
| DG-PR-900003 | 90 | 102 | 49 or 69.5 | Hydraulic | 17 to 30 | 3,500 |
Will the EIP Power Rake Fit My Skid Steer?
The power rake mounts on a universal skid steer quick attach and runs on the machine's auxiliary hydraulics: 17 to 24 GPM for the standard flow models and 17 to 30 GPM for the high flow models, and EIP says not to exceed those ranges. EIP rates the standard flow models for machines up to 67 HP.
The hydraulic slew models need an electrical harness matched to your machine, which is not included. EIP offers CAT and ASV 8 pin, Bobcat 7 pin and 14 pin harnesses and a universal plug and play harness with a cab controller.
Send us your machine make and model before you order and we will confirm the flow, the slew and the harness it needs.
Will this fit my machine?
Pick your machine type, make and model in the compatibility checker to see if this power rake is built for your machine.
Fit promise: A person on our team confirms your machine before your order goes to the maker.
We check the fit with you by phone before you order, Monday to Friday, 9 AM to 5 PM ET.
Why buy from Attachment Empire
-
Authorized dealer
We order factory direct from EIP Manufacturing, with specs and options straight from the source.
-
Fit check by phone
Call (317) 961-7135 with your make and model and we check the fit before you order.
-
Secure checkout
You pay through Shopify's encrypted checkout.
Frequently asked questions
Will this power rake fit my machine?
Pick your machine type, make and model in the compatibility checker on this page to see if this power rake is built for your machine. To have a person check it, call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET.
What does my machine need for this power rake?
From the checklist at the top of this page:
- Requires auxiliary hydraulics, 17 to 24 GPM (standard) or 17 to 30 GPM (high flow)
- Hydraulic slew models need an electrical harness, not included
- Universal skid steer quick attach; standard flow models up to 67 HP
Who makes this power rake?
EIP Manufacturing builds it. We order it factory direct from EIP Manufacturing.
How do I pay?
Checkout takes Visa, Mastercard, American Express, Discover and Diners Club cards, plus PayPal, Apple Pay, Google Pay and Shop Pay. You pay through Shopify's encrypted checkout.
Can I talk to someone before I order?
Yes. Call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET, or email support@attachmentempire.com.
