$2,309.00

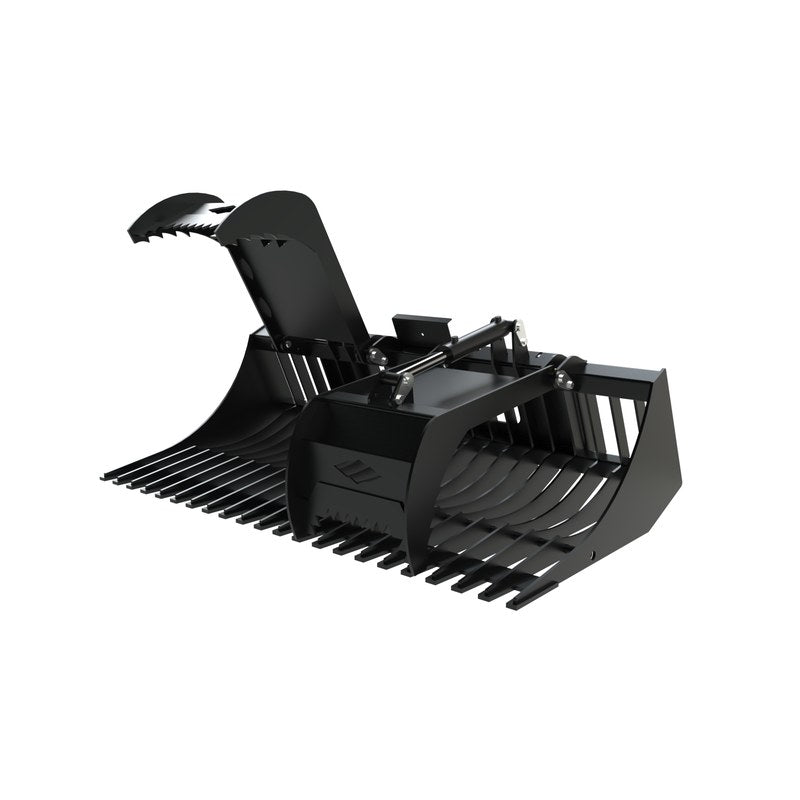

Top Dog Attachments 72 Inch Utility Grapple
$3,178.57- Requires auxiliary hydraulics; couplers not included
- Universal skid steer quick attach, loaders lifting up to 2,000 pounds
- 72 inches wide, 783 pounds
Shipping
- Orders under $5,000$349 flat
- Orders of $5,000 or moreFree
- Items over 2,000 lb, orders under $20,000$999 flat
- Items over 2,000 lb, orders of $20,000 or moreFree
🚚 U.S. delivery · timing varies by product
✓ Product-specific fitment
Top Dog Attachments Grapple Bucket Overview
Top Dog recommends its 72 inch utility grapple for skid steers and compact tractors with up to 2,000 pounds of total lift capacity, and it keeps the grapple to 783 pounds of Grade 50 steel so more of that capacity goes to the load. It has a 1/2 by 8 inch Grade 50 cutting edge, 3/8 inch Grade 50 grapple arms on 2 by 8 inch clevis cylinders, and a 35.25 inch opening. Use it for brush, logs, roots and debris on farms, job sites and landscaping work.
The bucket is 33 inches deep with 3 by 3 by 3/16 inch top and bottom tubes, and it runs 3/8 inch hoses. Couplers are not included.
Top Dog Utility Grapple Features for Smaller Skid Steers and Tractors
- For loaders with up to 2,000 pounds of lift capacity
- 1/2 by 8 inch Grade 50 cutting edge
- 3/8 inch Grade 50 grapple arms on 2 by 8 inch clevis cylinders
- 35.25 inch grapple opening
- 3/8 inch hoses, couplers not included
- Typical lead time from Top Dog is about 4 weeks, depending on the product
Top Dog 72 Inch Utility Grapple Specifications
| Spec | Detail |
|---|---|
| Part number | 9023001 |
| Width | 72 inches |
| Height, closed | 26 inches |
| Height, open | 40 inches |
| Overall depth | 41.75 inches |
| Grapple opening | 35.25 inches |
| Depth of bucket | 33 inches |
| Top and bottom tubes | 3 by 3 by 3/16 inch |
| Weight | 783 pounds |
Top Dog's utility grapple spec sheet has the full dimension list.
Will the Top Dog Utility Grapple Fit My Machine?
The grapple mounts on the universal skid steer quick attach and runs on your auxiliary hydraulics. Top Dog recommends it for loaders with up to 2,000 pounds of total lift capacity, so check your machine's rating before you order.
Send us your skid steer or tractor make and model and we confirm it with Top Dog.
Will this fit my machine?
Pick your machine type, make and model in the compatibility checker to see if this grapple bucket is built for your machine.
Fit promise: A person on our team confirms your machine before your order goes to the maker.
We check the fit with you by phone before you order, Monday to Friday, 9 AM to 5 PM ET.
Why buy from Attachment Empire
-
Authorized dealer
We order factory direct from Top Dog Attachments, with specs and options straight from the source.
-
Fit check by phone
Call (317) 961-7135 with your make and model and we check the fit before you order.
-
Secure checkout
You pay through Shopify's encrypted checkout.
Frequently asked questions
Will this grapple bucket fit my machine?
Pick your machine type, make and model in the compatibility checker on this page to see if this grapple bucket is built for your machine. To have a person check it, call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET.
What does my machine need for this grapple bucket?
From the checklist at the top of this page:
- Requires auxiliary hydraulics; couplers not included
- Universal skid steer quick attach, loaders lifting up to 2,000 pounds
- 72 inches wide, 783 pounds
Who makes this grapple bucket?
Top Dog Attachments builds it. We order it factory direct from Top Dog Attachments.
How do I pay?
Checkout takes Visa, Mastercard, American Express, Discover and Diners Club cards, plus PayPal, Apple Pay, Google Pay and Shop Pay. You pay through Shopify's encrypted checkout.
Can I talk to someone before I order?
Yes. Call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET, or email support@attachmentempire.com.
