$2,309.00
Top Dog Attachments Skid Steer Bale Grapple
$6,489.00- Requires auxiliary hydraulics; flat face couplers on it
- Universal skid steer quick attach, 3,000 PSI maximum
- 72 to 82 inches wide, 1,204 to 1,342 pounds
Shipping
- Orders under $5,000$349 flat
- Orders of $5,000 or moreFree
- Items over 2,000 lb, orders under $20,000$999 flat
- Items over 2,000 lb, orders of $20,000 or moreFree
🚚 U.S. delivery · timing varies by product
✓ Product-specific fitment

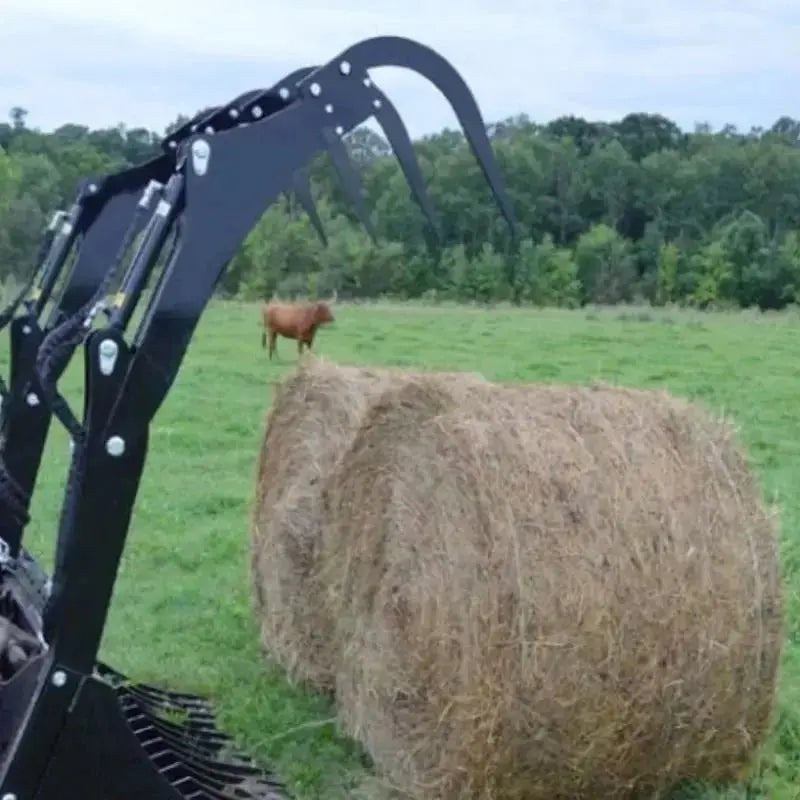

Top Dog Attachments Bale Grapple Overview
Top Dog built this bale grapple to move large hay bales. A tined bucket 40 inches deep cradles the bale, and extended grapple tines of 5/8 inch T-1 steel reach over the top through a 73 inch opening, then clamp down on 2-1/2 by 12 inch cylinders rated to 3,000 PSI. Choose 72, 79 or 82 inch widths for your skid steer. Top Dog also sells the grapple assembly by itself, listed as grapple only.
The bucket tines are 3/8 inch Grade 50 steel behind a 1/2 by 10 inch Grade 50 cutting edge, with 3 by 4 by 1/4 inch top and bottom tubes. Flat face couplers and 3/8 inch hoses come on it.
Top Dog Skid Steer Bale Grapple Features
- Extended 5/8 inch T-1 laser cut grapple tines
- 73 inch grapple opening, 78 inches tall when open
- 2-1/2 by 12 inch welded clevis cylinders, 3,000 PSI maximum
- Flat face couplers and 3/8 inch hoses
- Grease zerks on the pivot points
- Typical lead time from Top Dog is about 4 weeks, depending on the product
Top Dog Bale Grapple Sizes
| Model | Width | Weight |
|---|---|---|
| 72 inch | 72 inches | 1,204 pounds |
| 79 inch | 79 inches | 1,289 pounds |
| 82 inch | 82 inches | 1,342 pounds |
| Grapple only | Not published | 524 pounds |
Top Dog Bale Grapple Dimensions
| Spec | Detail |
|---|---|
| Height, closed | 55 inches |
| Height, open | 78 inches |
| Overall depth | 60 inches |
| Grapple opening | 73 inches |
| Depth of bucket | 40 inches |
| Cutting edge | 1/2 by 10 inch Grade 50 |
Every figure above is on Top Dog's bale grapple spec sheet.
Will the Top Dog Bale Grapple Fit My Skid Steer?
The bale grapple mounts on the universal skid steer quick attach, and the grapple runs on your auxiliary hydraulics through flat face couplers. It weighs 1,204 to 1,342 pounds before the bale, so match it to a machine rated to carry both.
Send us your machine make and model and we confirm the width with Top Dog before you order.
Will this fit my machine?
Pick your machine type, make and model in the compatibility checker to see if this bale grapple is built for your machine.
Fit promise: A person on our team confirms your machine before your order goes to the maker.
We check the fit with you by phone before you order, Monday to Friday, 9 AM to 5 PM ET.
Why buy from Attachment Empire
-
Authorized dealer
We order factory direct from Top Dog Attachments, with specs and options straight from the source.
-
Fit check by phone
Call (317) 961-7135 with your make and model and we check the fit before you order.
-
Secure checkout
You pay through Shopify's encrypted checkout.
Frequently asked questions
Will this bale grapple fit my machine?
Pick your machine type, make and model in the compatibility checker on this page to see if this bale grapple is built for your machine. To have a person check it, call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET.
What does my machine need for this bale grapple?
From the checklist at the top of this page:
- Requires auxiliary hydraulics; flat face couplers on it
- Universal skid steer quick attach, 3,000 PSI maximum
- 72 to 82 inches wide, 1,204 to 1,342 pounds
