$2,309.00
Berlon Industries BELGR Extended Lip Grapple Bucket
$5,846.00- Requires auxiliary hydraulics; hoses, couplers and needle valve included
- Universal skid steer quick attach, MPUF-1 plate included
- 72 or 78 inches wide, 1,027 or 1,057 pounds
Shipping
- Orders under $5,000$349 flat
- Orders of $5,000 or moreFree
- Items over 2,000 lb, orders under $20,000$999 flat
- Items over 2,000 lb, orders of $20,000 or moreFree
🚚 U.S. delivery · timing varies by product
✓ Product-specific fitment
Berlon Industries Grapple Bucket Overview

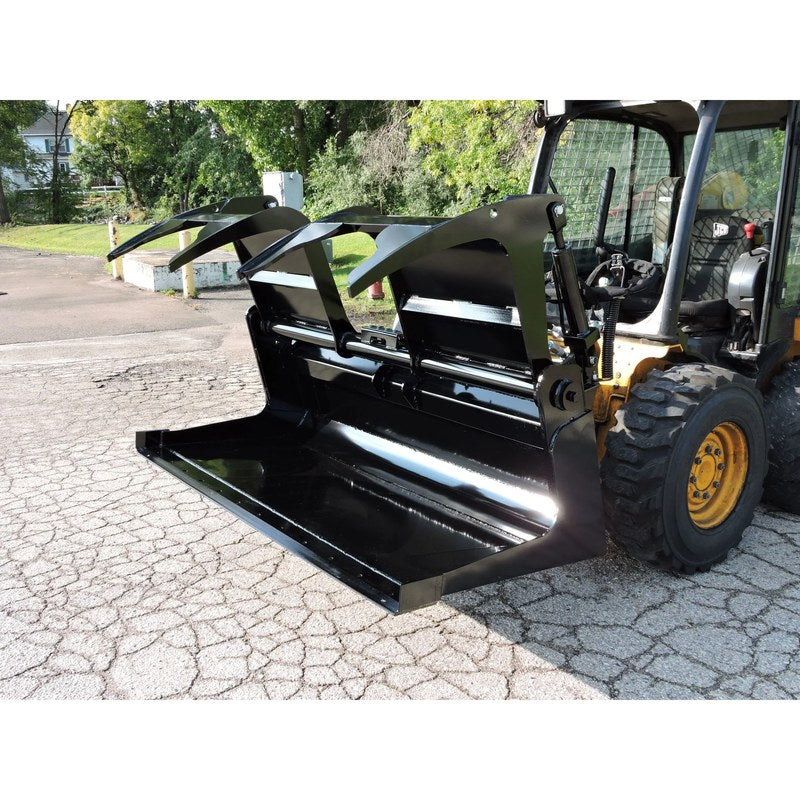

Demolition debris, scrap and storm clean up come in every shape, and a plain bucket drops half of it. Berlon's BELGR grapple bucket puts two claws that work independently over an extended lip bucket, so each claw clamps down on its own side of an uneven load. The 3/16 inch steel bucket has a dimple plate floor and scrap ends, and hoses, couplers, a hose saver and a needle valve come with it. Choose 72 or 78 inches wide on the universal skid steer quick attach.
The BELGR Series is Berlon's extended lip grapple bucket for demolition, scrap yards and general clean up. The extended floor gives a clear view of the cutting edge, and the bucket carries a 3/4 by 6 inch weld-on cutting edge with holes, so a bolt-on edge or tooth bar can be added.
Berlon Skid Steer Grapple Bucket Features
- Dual, independent claws that clamp uneven loads
- Two 2.5 inch bore cylinders Berlon rates at 3,000 pounds
- Extended floor for cutting edge visibility
- 3/16 inch thick steel body with a dimple plate floor, a Berlon exclusive by Berlon's account
- 3/4 by 6 inch weld-on cutting edge with holes
- Scrap ends, hoses, couplers, hose saver and needle valve included
- Radius kick-out plate and a reinforcement tube across the back
- Built to order by Berlon Industries, currently 5 to 6 weeks
Berlon BELGR Grapple Bucket Sizes
| Model | Inside width | Height | Depth | Grapple opening | Weight |
|---|---|---|---|---|---|
| BELGR-72 | 72 inches | 21 inches | 36 inches | 34.25 inches | 1,027 pounds |
| BELGR-78 | 78 inches | 21 inches | 36 inches | 34.25 inches | 1,057 pounds |
Berlon BELGR Edge and Build Options
| Option | What it adds |
|---|---|
| Weld-on edge | The standard 3/4 by 6 inch weld-on cutting edge with holes, so a bolt-on edge or tooth bar can be added later |
| Bolt-on cutting edge | Berlon BOCE: a reversible 3/4 by 8 inch beveled edge in C-1080 high carbon steel that bolts to the weld-on edge |
| Bolt-on tooth bar | Berlon BOTB: an HD shank tooth bar with replaceable #23 teeth that bolts over the weld-on edge |
| Bolt-on edge and tooth bar | The bolt-on cutting edge plus Berlon's BOTBOE tooth bar, built to bolt over it |
| HD package | The MPUF-1HD universal plate and a double reinforcement kit, which Berlon recommends for track machines and machines over 75 HP |
Read the Berlon grapple owner's manual (PDF) for setup, hose routing and safe operation.
Will the Berlon BELGR Grapple Fit My Skid Steer?
The BELGR needs one auxiliary hydraulic circuit for the claws and comes with the hoses, couplers, hose saver and needle valve. It hangs on the MPUF-1 universal mounting plate used on most skid steers and compact track loaders and on tractor loaders built with a skid steer style plate; the HD package swaps in the MPUF-1HD plate and adds a double reinforcement kit for track machines and machines over 75 HP. It weighs 1,027 or 1,057 pounds empty.
Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
Will this fit my machine?
Pick your machine type, make and model in the compatibility checker to see if this grapple bucket is built for your machine.
Fit promise: A person on our team confirms your machine before your order goes to the maker.
We check the fit with you by phone before you order, Monday to Friday, 9 AM to 5 PM ET.
Why buy from Attachment Empire
-
Authorized dealer
We order factory direct from Berlon Industries, with specs and options straight from the source.
-
Fit check by phone
Call (317) 961-7135 with your make and model and we check the fit before you order.
-
Secure checkout
You pay through Shopify's encrypted checkout.
Frequently asked questions
Will this grapple bucket fit my machine?
Pick your machine type, make and model in the compatibility checker on this page to see if this grapple bucket is built for your machine. To have a person check it, call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET.
What does my machine need for this grapple bucket?
From the checklist at the top of this page:
- Requires auxiliary hydraulics; hoses, couplers and needle valve included
- Universal skid steer quick attach, MPUF-1 plate included
- 72 or 78 inches wide, 1,027 or 1,057 pounds
Who makes this grapple bucket?
Berlon Industries builds it. We order it factory direct from Berlon Industries.
How do I pay?
Checkout takes Visa, Mastercard, American Express, Discover and Diners Club cards, plus PayPal, Apple Pay, Google Pay and Shop Pay. You pay through Shopify's encrypted checkout.
Can I talk to someone before I order?
Yes. Call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET, or email support@attachmentempire.com.
