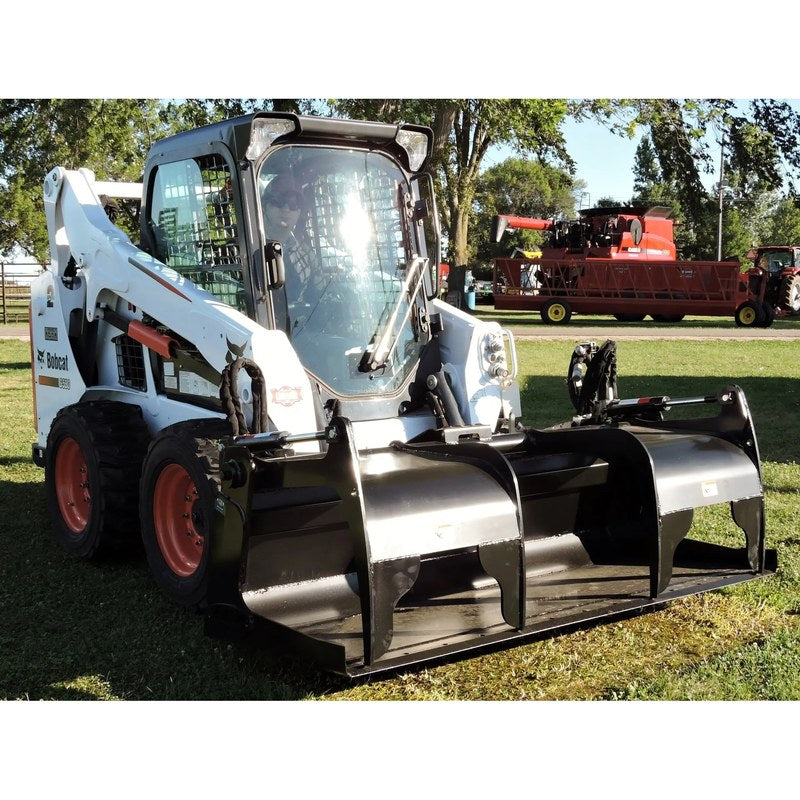

Berlon Industries BELHDGR Heavy Duty Grapple Bucket

A grapple bucket on a big track loader takes twisting loads that crack light frames. Berlon's BELHDGR is the heavy duty version of its extended lip grapple: a 1/4 inch steel bucket with a double reinforcement tube across the back and the HD package standard, which means the MPUF-2HD universal plate. Two claws work independently to clamp scrap, logs and demolition debris, and hoses, couplers, a hose saver and a needle valve are included. It comes 78, 84 or 90 inches wide.

The BELHDGR Series is Berlon's extended lip heavy duty grapple bucket for demolition, scrap yards and general clean up on larger machines. It carries a 3/4 by 6 inch weld-on cutting edge with holes, scrap ends, a radius kick-out plate and a dimple plate floor.

Berlon Heavy Duty Skid Steer Grapple Bucket Features

• 1/4 inch thick steel body
• Double reinforcement tube across the back of the bucket
• HD package standard: MPUF-2HD universal mounting plate
• Dual, independent claws on two 2.5 inch bore cylinders Berlon rates at 3,000 pounds
• 3/4 by 6 inch weld-on cutting edge with holes
• Dimple plate floor and scrap ends
• Hoses, couplers, hose saver and needle valve included
• Built to order by Berlon Industries, currently 5 to 6 weeks

Berlon BELHDGR Grapple Bucket Sizes

Berlon BELHDGR Edge Options

Read the Berlon grapple owner's manual (PDF) for setup, hose routing and safe operation.

Will the Berlon BELHDGR Grapple Fit My Skid Steer?

The BELHDGR needs one auxiliary hydraulic circuit and comes with the hoses, couplers, hose saver and needle valve. It hangs on the MPUF-2HD universal mounting plate used on most skid steers and compact track loaders, and Berlon recommends its HD package for track machines and machines over 75 HP. It weighs 1,384 to 1,530 pounds empty, so it suits larger machines.

Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
