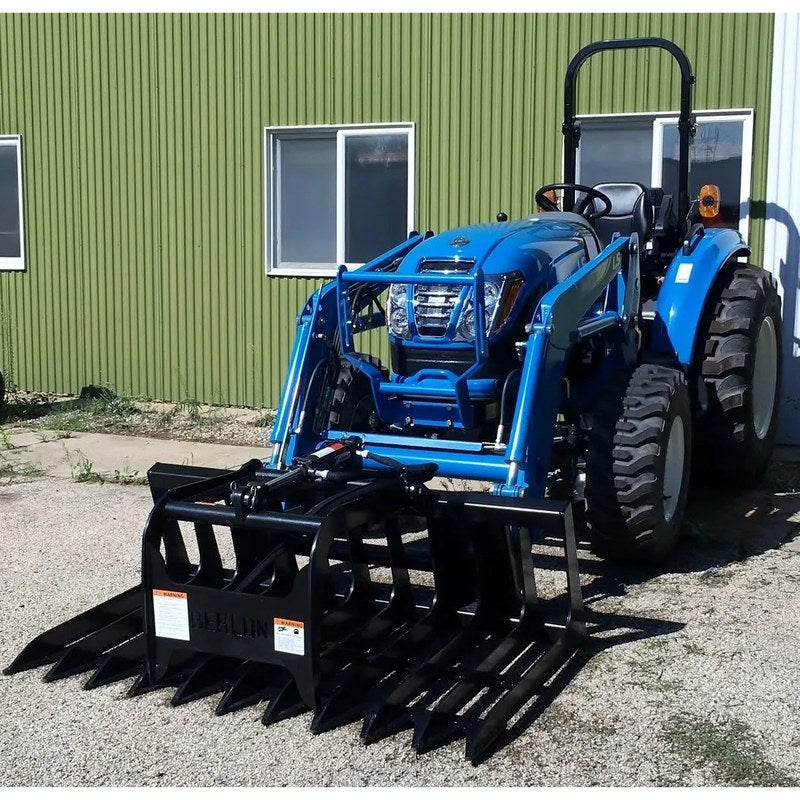

Berlon Industries LDGR Light Duty Brush Grapple

Brush piles and fallen limbs are the work most compact tractor and small skid steer owners buy a grapple for, and a heavy grapple eats their lift capacity. Berlon's LDGR light duty grapple weighs 491 to 557 pounds and opens 41 inches on a single 2.5 inch bore cylinder, and Berlon recommends it for machines of 50 HP and less. Tines are 3/8 inch thick and spaced 6 inches apart. Hoses, couplers, a hose saver and a needle valve are included, on the universal skid steer quick attach.

The LDGR Series is Berlon's light duty grapple for today's compact tractors and small skid loaders, built for brush clean up. It has a fully welded leading edge and scrap ends, and comes 54, 60 or 66 inches wide on the MPUF-1 universal mounting plate.

Berlon Light Duty Brush Grapple Features

• Recommended for machines of 50 HP and less
• Single 2.5 inch bore cylinder Berlon rates at 3,000 pounds
• 41 inch grapple opening
• 3/8 inch thick tines spaced 6 inches apart
• Fully welded leading edge and scrap ends
• Hoses, couplers, hose saver and needle valve included
• MPUF-1 universal skid steer mounting plate
• Built to order by Berlon Industries, currently 5 to 6 weeks

Berlon LDGR Grapple Sizes

Read the Berlon grapple owner's manual (PDF) for setup, hose routing and safe operation.

Will the Berlon Light Duty Grapple Fit My Tractor or Skid Steer?

Berlon recommends the LDGR for compact tractors and small skid steers of 50 HP and less. It needs one auxiliary hydraulic circuit and comes with the hoses, couplers, hose saver and needle valve, and it hangs on the MPUF-1 universal mounting plate found on most skid steers and on tractor loaders built with a skid steer style plate. Berlon also builds a John Deere compact tractor mount (MPJD-1); ask us about it.

Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
