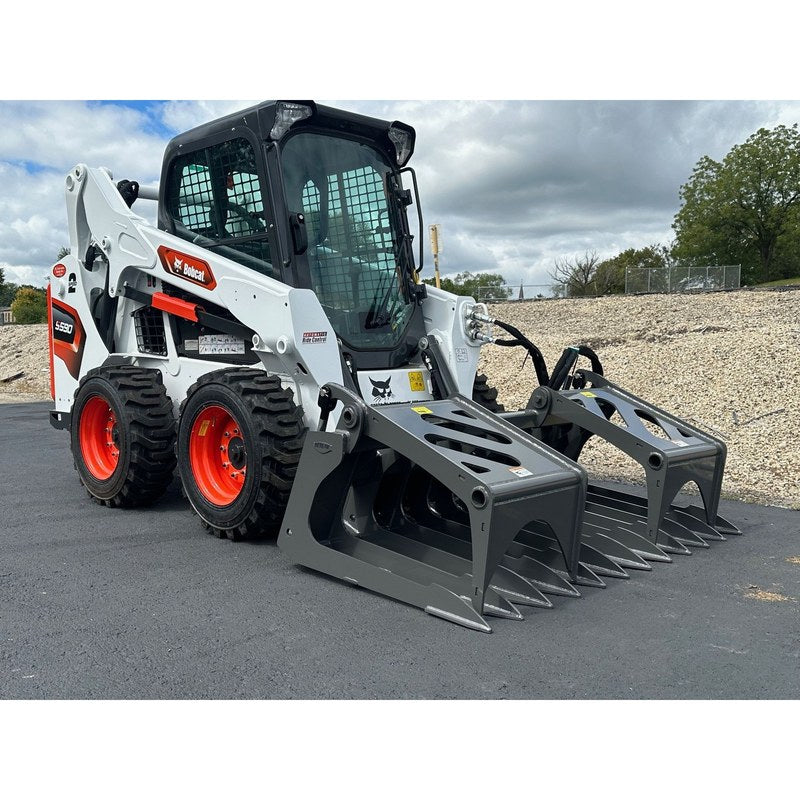

Berlon Industries MDGR2 Medium Duty Skid Steer Grapple

Moving brush, logs and rocks and clearing fence lines is grapple work, and the right size grapple keeps a mid size machine productive without overloading it. Berlon's MDGR2 medium duty grapple is built for machines between 50 and 75 HP, with two independent claws that open 41 inches and 3/8 inch tines spaced 6 inches apart. It weighs 735 to 810 pounds across 66, 72 and 78 inch widths, and hoses, couplers, a hose saver and a needle valve come with it.

The MDGR2 Series is Berlon's medium duty grapple for brush clean up, logs, rock and fence lines. It has a fully welded leading edge and scrap ends, on the MPUF-1 universal mounting plate.

Berlon Medium Duty Skid Steer Grapple Features

• Built for machines between 50 and 75 HP
• Dual, independent claws on cylinders Berlon rates at 3,000 pounds with a 2.5 inch bore
• 41 inch grapple opening
• 3/8 inch thick tines spaced 6 inches apart
• Fully welded leading edge and scrap ends
• Hoses, couplers, hose saver and needle valve included
• MPUF-1 universal skid steer mounting plate
• Built to order by Berlon Industries, currently 5 to 6 weeks

Berlon MDGR2 Grapple Sizes

Read the Berlon grapple owner's manual (PDF) for setup, hose routing and safe operation.

Will the Berlon MDGR2 Grapple Fit My Skid Steer?

Berlon recommends the MDGR2 for machines between 50 and 75 HP. It needs one auxiliary hydraulic circuit and comes with the hoses, couplers, hose saver and needle valve, and it hangs on the MPUF-1 universal mounting plate found on most skid steers and compact track loaders and on tractor loaders built with a skid steer style plate.

Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
