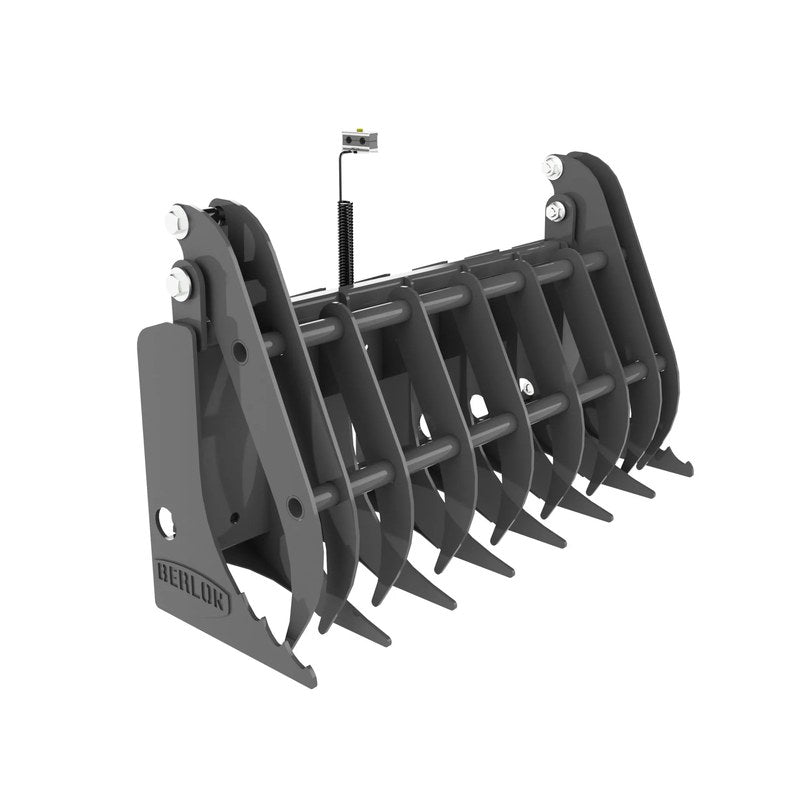

Berlon Industries RRG Root Rake Grapple

Picking up brush, logs and storm debris with a compact tractor is slow work without a grapple that opens wide and grips tight. Berlon's RRG root rake grapple opens 50 inches, with 3/8 inch tines spaced 8 inches apart and serrated teeth on the end tines to hold the load. Its 2.5 inch bore cylinders sit on the back side, out of the brush and set to maximize the opening. Berlon builds it for compact tractors up to 50 HP, in 48 to 72 inch widths.

The RRG Series is Berlon's root rake grapple for picking up brush, logs and debris. It comes with a hose saver spring, hoses and couplers, on the MPUF-1 universal skid steer mounting plate that many compact tractor loaders use.

Berlon Compact Tractor Root Rake Grapple Features

• 50 inch claw opening
• 3/8 inch tines spaced 8 inches apart
• Serrated teeth on the end tines
• 2.5 inch bore, 8 inch stroke cylinders
• Cylinders mounted on the back side for protection and a wider opening
• Hose saver spring, hoses and couplers included
• Recommended for compact tractors up to 50 HP
• Built to order by Berlon Industries, currently 5 to 6 weeks

Berlon RRG Root Rake Grapple Sizes

Will the Berlon Root Rake Grapple Fit My Tractor?

Berlon recommends the RRG for compact tractors up to 50 HP. It needs one auxiliary hydraulic circuit and comes with the hoses and couplers, and it hangs on the MPUF-1 universal mounting plate, the skid steer style quick attach on many compact tractor loaders and on skid steers. Berlon also builds a John Deere compact tractor mount (MPJD-1); ask us about it.

Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
