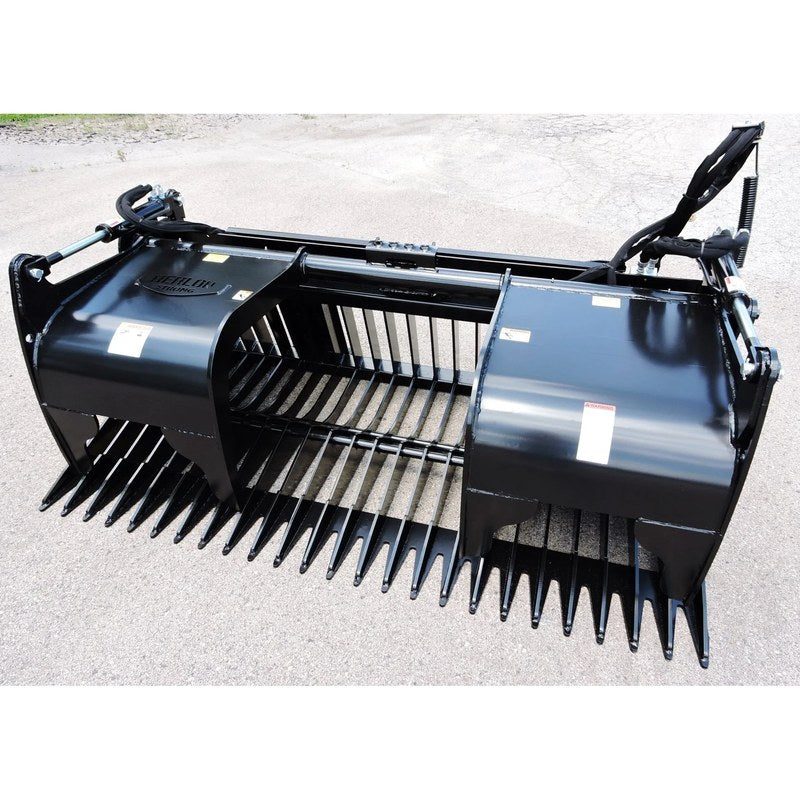

Berlon Industries SKLGR Skeleton Rock Grapple Bucket

Rock, brush and scrap roll out of an open skeleton bucket the moment the machine turns. Berlon's SKLGR adds two independent claws to its skeleton rock bucket so awkward loads stay clamped while dirt sifts through the 3 inch gaps. The 3/8 inch ribs are welded on both sides, two 1-1/4 inch solid steel rods run through them, and a deep-well rock dam holds material while you carry it or pick up more. It comes 72, 78 or 84 inches wide on the MPUF-1HD plate.

The SKLGR Series is Berlon's skeleton rock grapple for rock picking, clearing fence lines, construction, scrap metal and other clean up. It has a fully welded leading edge, and the scrap ends, hoses, couplers, hose saver and needle valve are included.

Berlon Skeleton Rock Grapple for Skid Steers Features

• Dual, independent claws for clamping awkward loads
• 3/8 inch thick ribs spaced 3 inches apart, fully welded on both sides
• Two 1-1/4 inch solid steel rods welded through the ribs
• Deep-well rock dam
• Two 2.5 inch bore cylinders Berlon rates at 3,000 pounds
• Fully welded leading edge
• Hoses, couplers, hose saver and needle valve included
• Built to order by Berlon Industries, currently 5 to 6 weeks

Berlon SKLGR Rock Grapple Sizes

Read the Berlon grapple owner's manual (PDF) for setup, hose routing and safe operation.

Will the Berlon Skeleton Rock Grapple Fit My Skid Steer?

The SKLGR needs one auxiliary hydraulic circuit and comes with the hoses, couplers, hose saver and needle valve. It hangs on the MPUF-1HD universal mounting plate used on most skid steers and compact track loaders and on tractor loaders built with a skid steer style plate. It weighs 1,221 to 1,343 pounds empty, so rock loads add up quickly; check your rated operating capacity.

Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
