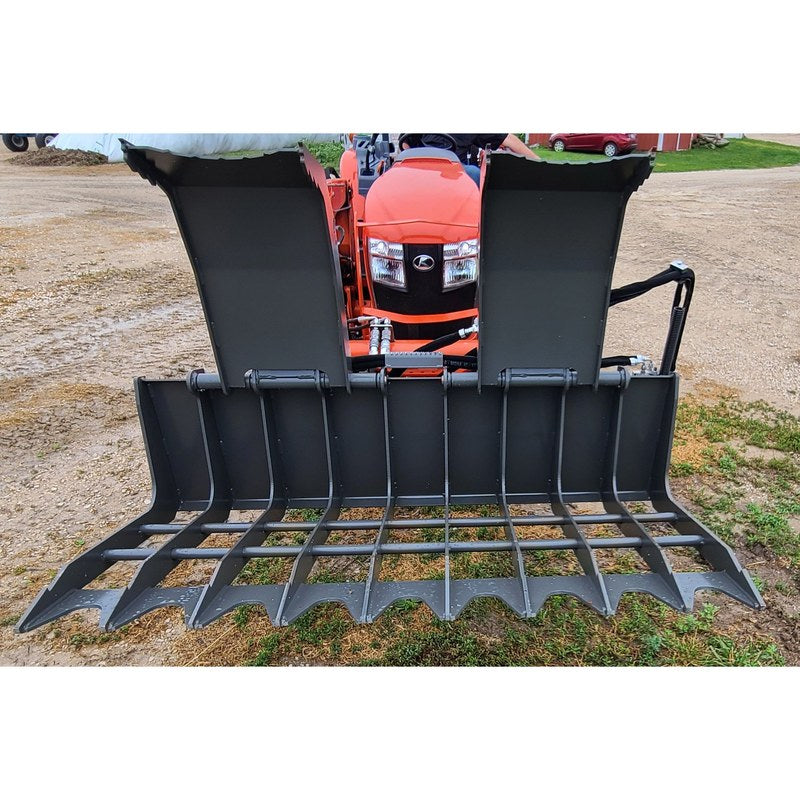

Berlon Industries G Series Tine Grapple for Skid Steers

Woodlot clean up, debris removal and bale moving all go better when dirt falls through and the load stays clamped. Berlon's G Series tine grapple has open tine construction that lets smaller items and dirt sift out for a cleaner load, with 1/2 inch outer tines, 3/8 inch inner tines and fully enclosed grapple clamps. The 56 inch model has one hydraulic claw and the 72 and 84 inch models have two. It opens 40 inches and fits skid steers, wheel loaders and tractors with a universal plate.

The G Series is Berlon's tine grapple for removing debris, woodlot clean up, general agricultural work, moving bales and clearing areas. Two 1-1/4 inch thick wall tubes support the tines, the back is fully enclosed, and the cylinder rods are protected on four sides.

Berlon Skid Steer Tine Grapple Features

• Open tine construction lets dirt and small debris sift out
• Two 1-1/4 inch thick wall tubes support the tines
• 1/2 inch outer tines and 3/8 inch inner tines, 7 inches apart
• Fully enclosed back and fully enclosed grapple clamps
• Four sided protection of the cylinder rods
• Cylinders Berlon rates at 3,000 pounds at 3,000 PSI
• One hydraulic claw on the 56 inch, two on the 72 and 84 inch; hoses, couplers, hose saver and needle valve included
• Built to order by Berlon Industries, currently 5 to 6 weeks

Berlon G Series Tine Grapple Sizes

Will the Berlon Tine Grapple Fit My Machine?

The G Series needs one auxiliary hydraulic circuit and comes with the hoses, couplers, hose saver and needle valve. It hangs on the MPUF-1 universal mounting plate used on most skid steers, compact track loaders and wheel loaders with a skid steer style plate, and on tractor loaders built with the same plate. The grapples weigh 478 to 704 pounds empty.

Send us your machine make and model before you order and we will confirm the fit before your order goes to Berlon.
