Connect Work Tools CG Series Sorting Grapple for Excavators
$23,659.00- Requires auxiliary hydraulics, 16 to 55 GPM, plus a rotation circuit
- Fits 16,000 to 100,000 pound excavators across five sizes
- Bracket and pins included, hydraulic hoses not included
Shipping
- Orders under $5,000$349 flat
- Orders of $5,000 or moreFree
- Items over 2,000 lb, orders under $20,000$999 flat
- Items over 2,000 lb, orders of $20,000 or moreFree
🚚 U.S. delivery · timing varies by product
✓ Product-specific fitment
Connect Work Tools Sorting Grapple Overview

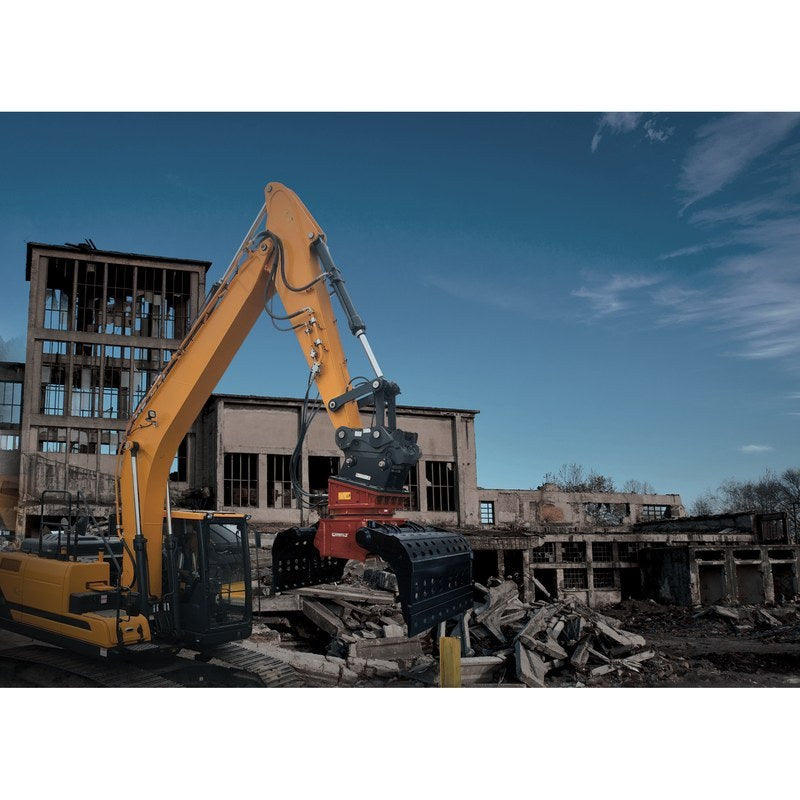

Demolition and recycling crews sorting debris and cleaning up a site need a grapple that turns a full circle on the excavator. The Connect Work Tools CG line runs from the 7.1 cubic foot CG10, which needs 16 GPM on its jaw circuit, to the 40.1 cubic foot CG40 for machines up to 100,000 pounds, with rotation on a second circuit. Closed jaw widths run from 38 to 62 inches, and every CG takes a bolt on bracket in the same pattern as Connect's CH breakers.
The Connect Work Tools CG series sorting grapple gives an excavator full hydraulic rotation for industrial demolition, recycling and site cleanup. Connect builds it for light demolition of wooden structures, sorting materials and recycling concrete, sand, dirt and rock. Five models fit excavators from 16,000 to 100,000 pounds, and each comes with its mounting bracket and pins. Hydraulic hoses are not included.
Connect Work Tools CG Series Features: Rotating Demolition Grapple for Sorting and Recycling
- 360 degree hydraulic rotation
- Bolt on cutting edges for straightforward maintenance
- Fully protected hydraulic cylinders with a safety check valve
- Bolt on mounting bracket that matches the CH breaker configuration
- Capacities from 7.1 to 40.1 cubic feet across five models
- Mounting bracket and pins included; hydraulic hoses not included
Connect Work Tools CG Grapple Specifications
| Model | Working weight (lb) | Carrier weight (lb) | Capacity (cu ft) | Oil flow (GPM) | Jaw width closed (in) | Max jaw opening (in) |
|---|---|---|---|---|---|---|
| CG10 | 1,080 | 16,000 to 24,000 | 7.1 | 16 | 38 | 63 |
| CG15 | 2,340 | 30,000 to 40,000 | 14.2 | 21 | 42 | 65 |
| CG22 | 3,420 | 40,000 to 60,000 | 24.7 | 26 | 48 | 78 |
| CG30 | 4,800 | 60,000 to 85,000 | 35.3 | 40 | 58 | 80 |
| CG40 | 5,200 | 85,000 to 100,000 | 40.1 | 55 | 62 | 84 |
Which Connect Work Tools CG Grapple Fits My Excavator?
Pick the model by your excavator's operating weight and auxiliary flow. The grapple uses two hydraulic circuits, one to open and close the jaws and one to rotate. Hydraulic hoses are not included. Send us your machine make and model and we will confirm the size and bracket before you order.
Connect Work Tools CG Grapple Manual and Brochure
Connect Work Tools documents for the CG series, each a PDF:
Product documents
Connect Work Tools PDFs for this sorting grapple.
Will this fit my machine?
Pick your machine type, make and model in the compatibility checker to see if this sorting grapple is built for your machine.
Fit promise: A person on our team confirms your machine before your order goes to the maker.
We check the fit with you by phone before you order, Monday to Friday, 9 AM to 5 PM ET.
Why buy from Attachment Empire
-
Authorized dealer
We order factory direct from Connect Work Tools, with specs and options straight from the source.
-
Fit check by phone
Call (317) 961-7135 with your make and model and we check the fit before you order.
-
Secure checkout
You pay through Shopify's encrypted checkout.
Frequently asked questions
Will this sorting grapple fit my machine?
Pick your machine type, make and model in the compatibility checker on this page to see if this sorting grapple is built for your machine. To have a person check it, call (317) 961-7135, Monday to Friday, 9 AM to 5 PM ET.
What does my machine need for this sorting grapple?
From the checklist at the top of this page:
- Requires auxiliary hydraulics, 16 to 55 GPM, plus a rotation circuit
- Fits 16,000 to 100,000 pound excavators across five sizes
- Bracket and pins included, hydraulic hoses not included
Who makes this sorting grapple?
Connect Work Tools builds it. We order it factory direct from Connect Work Tools.
