$2,309.00
Top Dog Attachments Low Profile Dirt Bucket With Grapple
$3,214.29- Requires auxiliary hydraulics; flat face couplers on it
- Universal skid steer quick attach, 3,000 PSI maximum
- 60 to 84 inches wide, 827 to 972 pounds
Shipping
- Orders under $5,000$349 flat
- Orders of $5,000 or moreFree
- Items over 2,000 lb, orders under $20,000$999 flat
- Items over 2,000 lb, orders of $20,000 or moreFree
🚚 U.S. delivery · timing varies by product
✓ Product-specific fitment

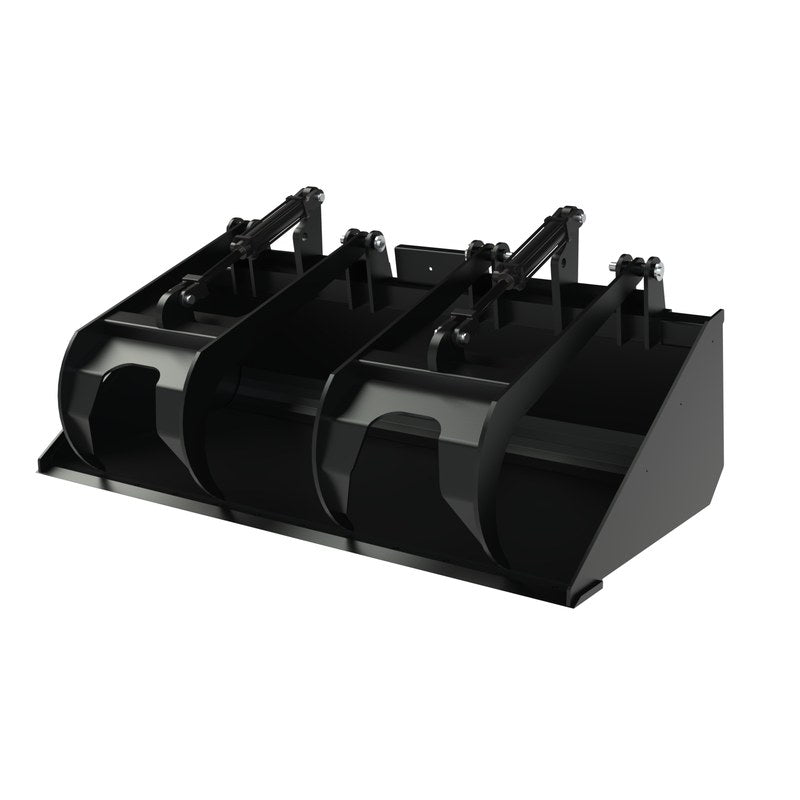

Top Dog Attachments Grapple Bucket Overview
A low profile dirt bucket with a grapple digs, levels and loads like your everyday bucket, then clamps down when the load is rock, brush or demolition scrap. Top Dog builds the bucket with a 3/16 inch body, a 3/4 by 6 inch cutting edge and 1/2 inch Grade 50 wear bars 10 inches wide underneath. Two laser cut 1/2 inch Grade 50 arms on 2 by 8 inch welded cylinders open 35.5 inches. Six widths run from 60 to 84 inches.
Flat face couplers and 3/8 inch hoses come on it, the hydraulics are rated to 3,000 PSI, and the pivot points take grease.
Top Dog Low Profile Skid Steer Grapple Bucket Features
- 3/16 inch body with 3/8 inch Grade 50 side cutting edges
- 3/4 by 6 inch cutting edge and 1/2 inch Grade 50 wear bars, 10 inches wide
- Two 1/2 inch Grade 50 laser cut grapple arms on 2 by 8 inch welded cylinders
- 35.5 inch grapple opening
- Flat face couplers and 3/8 inch hoses, 3,000 PSI maximum
- Grease zerks on the pivot points
- Typical lead time from Top Dog is about 4 weeks, depending on the product
Top Dog Low Profile Grapple Bucket Sizes and Capacity
| Width | Struck capacity | Heaped capacity | Weight |
|---|---|---|---|
| 60 inches | 13.2 cubic feet | 15.8 cubic feet | 827 pounds |
| 68 inches | 15 cubic feet | 18 cubic feet | 867 pounds |
| 72 inches | 15.9 cubic feet | 19 cubic feet | 872 pounds |
| 78 inches | 17.5 cubic feet | 20.5 cubic feet | 917 pounds |
| 80 inches | 17.75 cubic feet | 20.12 cubic feet | 952 pounds |
| 84 inches | 18.5 cubic feet | 22.25 cubic feet | 972 pounds |
Top Dog Low Profile Grapple Bucket Dimensions
| Spec | Detail |
|---|---|
| Height, closed | 28.5 inches |
| Height, open | 41.5 inches |
| Overall depth | 38.25 inches |
| Depth of bucket | 34 inches |
| Mounting plate | 5/16 inch HR steel |
Will the Top Dog Grapple Bucket Fit My Skid Steer?
The bucket mounts on the universal skid steer quick attach with a 5/16 inch plate, and the grapple runs on your auxiliary hydraulics through flat face couplers. It weighs 827 to 972 pounds on Top Dog's list.
Send us your machine make and model and we confirm the width with Top Dog before you order.
Will this fit my machine?
Pick your machine type, make and model in the compatibility checker to see if this grapple bucket is built for your machine.
Fit promise: A person on our team confirms your machine before your order goes to the maker.
We check the fit with you by phone before you order, Monday to Friday, 9 AM to 5 PM ET.
